BLE Beacon NeoPixels

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT

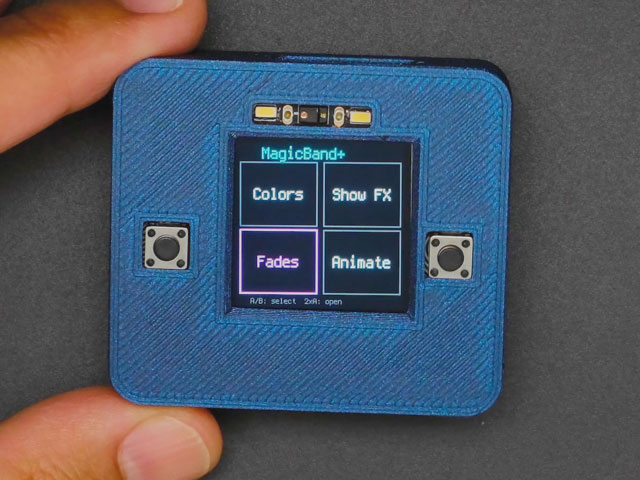

'''MagicBand+ BLE remote for the Adafruit CLUE (nRF52840).

Broadcasts Disney MagicBand+ BLE commands using the 0x0183 manufacturer
identifier. Grid of category tiles on startup; A/B navigate, double-tap B
opens the selected category. In the list view, A/B scroll, double-tap A
fires the highlighted command, double-tap B returns to grid, and a long
press on B fires the OFF command to cancel a running animation. Shake the
CLUE to pick a random command; confirm with double-tap A or cancel with B.
'''
# Target: Adafruit CLUE (nRF52840) - the BLE remote
import gc
import os
import random
import time

import _bleio
import alarm
import board
import digitalio
import microcontroller
import neopixel
import pwmio
import supervisor
from adafruit_debouncer import Button

import ble_transmitter
import command_library
import ui

_STATE_GRID = 0
_STATE_LIST = 1
_STATE_CONFIRM = 2

_SHAKE_THRESHOLD = 32.0       # m/s^2 magnitude (higher = harder shake needed)
_SHAKE_COOLDOWN = 1.5         # seconds between shake triggers
_PALETTE = command_library.CATEGORIES

# Disney-style ascending chime played on the onboard piezo after each fire.
_CHIME = ((523, 0.08), (659, 0.08), (784, 0.14))

# Direct hardware access - skips loading adafruit_clue's full sensor suite.
i2c = board.I2C()
try:
    from adafruit_lsm6ds.lsm6ds33 import LSM6DS33
    accel = LSM6DS33(i2c)
except (OSError, RuntimeError, ImportError):
    from adafruit_lsm6ds.lsm6ds3trc import LSM6DS3TRC
    accel = LSM6DS3TRC(i2c)

display = board.DISPLAY
DISPLAY_ACTIVE_BRIGHTNESS = 0.8
DISPLAY_SLEEP_TIMEOUT_S = 30.0  # sleep TFT backlight after this many idle seconds
display.brightness = DISPLAY_ACTIVE_BRIGHTNESS

# Battery voltage monitoring intentionally not implemented on the CLUE.
# Unlike the Feather Sense which has a hardwired voltage divider from the
# LIPO rail, the CLUE has no such divider exposed on CircuitPython's board
# module. Pin-probing testing reads unconnected floating values.
#
# For power awareness, rely on the display auto-sleep feature which is the
# larger power saver anyway (~25-35mA savings when backlight is off).

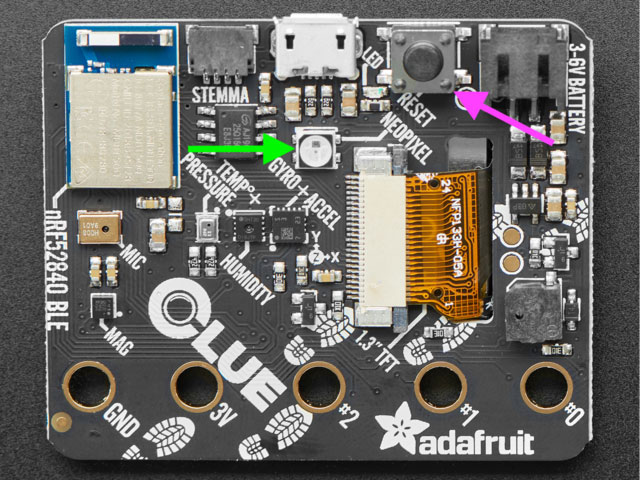

pixel = neopixel.NeoPixel(board.NEOPIXEL, 1, brightness=0.3)
pixel.fill((0, 0, 0))

# PWM-driven speaker avoids per-note audio buffer allocations.
speaker = pwmio.PWMOut(board.SPEAKER, variable_frequency=True, duty_cycle=0)

btn_a_io = digitalio.DigitalInOut(board.BUTTON_A)
btn_a_io.switch_to_input(pull=digitalio.Pull.UP)
btn_b_io = digitalio.DigitalInOut(board.BUTTON_B)
btn_b_io.switch_to_input(pull=digitalio.Pull.UP)

gc.collect()

grid_view = ui.GridView(_PALETTE)
list_view = ui.ListView()
confirm_view = ui.ConfirmView()
listen_view = ui.ListenView()

display.root_group = grid_view.group

button_a = Button(btn_a_io, value_when_pressed=False,
                  short_duration_ms=250, long_duration_ms=600)
button_b = Button(btn_b_io, value_when_pressed=False,
                  short_duration_ms=250, long_duration_ms=600)


def play_chime():
    '''Play the Disney-style confirmation chime via hardware PWM.

    Respects silent mode - skip playback when _silent_mode is on.
    '''
    if _silent_mode[0]:
        return
    for freq, dur in _CHIME:
        speaker.frequency = int(freq)
        speaker.duty_cycle = 0x8000
        time.sleep(dur)
        speaker.duty_cycle = 0


def pulse_pixel_and_fire(payload, display_color=(80, 0, 160)):
    '''Light the onboard NeoPixel while broadcasting, then fade.'''
    pixel.fill(display_color)
    ble_transmitter.broadcast(payload)
    pixel.fill((0, 0, 0))


def fire_command(command, status_setter):
    '''Broadcast a single command or play a multi-step sequence.

    command is a (name, payload, needs_ping) tuple. Payload can be a raw
    bytes packet for single commands or a tuple of step-tuples for shows.
    When needs_ping is True, a short CC03 wake ping is broadcast first to
    prime the band's receiver before the actual command.
    '''
    gc.collect()
    name, payload, needs_ping = command[0], command[1], command[2]

    # Intercept the listen-mode sentinel: instead of broadcasting, this
    # transitions to packet capture mode for protocol research.
    if payload == b"LISTEN":
        run_listen_mode()
        return

    if isinstance(payload, bytes):
        status_setter(f"Firing: {name}", 0x00FF00)
        play_chime()
        if needs_ping:
            pixel.fill((30, 30, 30))
            ble_transmitter.broadcast(
                command_library.PING_PAYLOAD, duration=0.5,
            )
        pulse_pixel_and_fire(payload)
    else:
        status_setter(f"Playing: {name}", 0x00FFFF)
        play_chime()
        if needs_ping:
            pixel.fill((30, 30, 30))
            ble_transmitter.broadcast(
                command_library.PING_PAYLOAD, duration=0.5,
            )
        total = len(payload)
        for i, step in enumerate(payload):
            step_bytes, hold, color = step
            status_setter(f"{name}  {i + 1}/{total}", 0x00FFFF)
            pixel.fill(color)
            ble_transmitter.broadcast(step_bytes, duration=hold)
        pixel.fill((0, 0, 0))
    status_setter("Ready", 0x404040)


def _listen_capture_loop(seen):
    '''BLE scanning loop for run_listen_mode. Returns when user holds B.

    seen: dict[bytes, list] mapping payload to [first_seen, count, rssi].
    Mutates seen in place. Returns total elapsed seconds.
    '''
    total_count = 0
    last_rssi = None
    start_time = time.monotonic()
    last_ui_update = 0.0
    adapter = _bleio.adapter
    if not adapter.enabled:
        adapter.enabled = True

    while True:
        button_b.update()
        button_a.update()
        # Require a long-press to exit listening mode, so accidental
        # B taps during a show don't end recording.
        if button_b.long_press:
            break
        try:
            for entry in adapter.start_scan(
                    interval=0.04, window=0.04,
                    minimum_rssi=-100, timeout=0.2,
                    extended=False, active=False):
                payload = _extract_disney_payload(entry.advertisement_bytes)
                if payload is None:
                    continue
                total_count += 1
                last_rssi = entry.rssi
                key = bytes(payload)
                if key in seen:
                    seen[key][1] += 1
                    seen[key][2] = entry.rssi
                else:
                    seen[key] = [time.monotonic() - start_time, 1, entry.rssi]
        finally:
            adapter.stop_scan()
        # Throttle UI updates to once per second to limit bitmap
        # reallocation churn (memory is tight on the CLUE).
        now = time.monotonic()
        if now - last_ui_update >= 1.0:
            last_ui_update = now
            listen_view.update_stats(now - start_time, total_count,
                                     len(seen), last_rssi)
    return time.monotonic() - start_time


def _save_capture_with_fallback(seen, elapsed):
    '''Try to save. If FS is read-only, set NVM flag for next-boot retry.'''
    try:
        path = _save_capture(seen, elapsed)
        short = path.split("/")[-1]
        listen_view.set_status(f"Saved: {short}  B", 0x00FF00)
    except OSError as err:
        # Filesystem is read-only - host has ownership. Set NVM flag
        # so next reset auto-creates the marker and enters capture mode.
        try:
            microcontroller.nvm[0] = 1
            listen_view.set_status("Reset to enable save  B", 0xFF8000)
        except (AttributeError, ImportError):
            listen_view.set_status(f"Save fail: {err}  B", 0xFF0000)


def _wait_for_dismiss_press():
    '''Wait for the next short B-press to dismiss the save confirmation.

    The user was holding B to stop capture, so adafruit_debouncer.Button
    has already emitted a long_press for that hold. We just need to wait
    for the next short_count tick - the debouncer handles release-detect
    and debounce timing internally.
    '''
    while True:
        button_b.update()
        if button_b.short_count > 0:
            return


def run_listen_mode():
    '''Enter BLE listening mode - capture unique 0x0183 packets to file.

    Stops broadcasting, starts BLE scanning, transitions UI to the
    listen view. User holds B to stop and save the capture.
    '''
    # Aggressively free memory before allocating capture state.
    gc.collect()
    display.root_group = listen_view.group
    note_activity()
    if supervisor.runtime.usb_connected:
        listen_view.set_status("USB - hold B to stop", 0xFF8000)
    else:
        listen_view.set_status("Hold B to stop")

    seen = {}  # payload bytes -> [first_seen_time, count, last_rssi]
    elapsed = _listen_capture_loop(seen)

    listen_view.set_status("Saving...", 0x00FFFF)
    _save_capture_with_fallback(seen, elapsed)
    _wait_for_dismiss_press()
    enter_grid()
    gc.collect()


def _extract_disney_payload(ad_bytes):
    '''Walk a BLE advert and extract the 0x0183 manufacturer payload.'''
    DISNEY_CID = 0x0183
    i = 0
    while i < len(ad_bytes):
        length = ad_bytes[i]
        if length == 0 or i + 1 + length > len(ad_bytes):
            break
        ad_type = ad_bytes[i + 1]
        if ad_type == 0xFF and length >= 3:
            cid = ad_bytes[i + 2] | (ad_bytes[i + 3] << 8)
            if cid == DISNEY_CID:
                return bytes(ad_bytes[i + 4:i + 1 + length])
        i += 1 + length
    return None


def _save_capture(seen, total_elapsed):
    '''Write captured packets to /captures/listen_NNN.txt.

    Returns the file path on success. Raises OSError if the filesystem
    is not writable (e.g., USB host has ownership of the drive).
    '''
    # Find next available sequence number
    base_dir = "/captures"
    try:
        os.mkdir(base_dir)
    except OSError:
        pass  # already exists
    existing = []
    try:
        existing = os.listdir(base_dir)
    except OSError:
        pass
    seq = 0
    while f"listen_{seq:03d}.txt" in existing:
        seq += 1
    path = f"{base_dir}/listen_{seq:03d}.txt"
    with open(path, "w", encoding="utf-8") as out:
        out.write(f"# Listen capture, total elapsed {total_elapsed:.1f}s\n")
        out.write(f"# {len(seen)} unique packets captured\n")
        out.write("# format: first_seen_s rssi count hex\n")
        # Sort by first_seen for readable chronological log
        items = sorted(seen.items(), key=lambda kv: kv[1][0])
        for payload, info in items:
            first_seen, count, rssi = info
            out.write(f"{first_seen:.3f} {rssi:>4} {count:>4} {payload.hex()}\n")
    return path


def fire_off(status_setter):
    '''Shortcut to broadcast the OFF command with distinct visual feedback.'''
    _, payload, _ = command_library.OFF_COMMAND
    gc.collect()
    status_setter("Off", 0xFF4040)
    play_chime()
    pixel.fill((40, 40, 40))
    ble_transmitter.broadcast(payload, duration=1.5)
    pixel.fill((0, 0, 0))
    status_setter("Ready", 0x404040)


# Precompute the pool of commands eligible for shake-random firing.
# Excluded:
#   - Custom sub-protocol commands (Ears Battery, Ears Brightness) -
#     payload starts with 0xAA. These only affect the QT Py ears, not
#     bands/wands, and would feel arbitrary as a random selection.
#   - The LISTEN sentinel - it triggers BLE capture mode, not a fire.
# Otherwise we include all commands. needs_ping=True commands still get
# their wake-ping when fired (handled by fire_command).
_RELIABLE_COMMANDS = []
for _cat_idx, (_, _commands) in enumerate(_PALETTE):
    for _cmd in _commands:
        _payload = _cmd[1]
        # Skip sentinel command
        if _payload == b"LISTEN":
            continue
        # Skip our custom sub-protocol packets (start with 0xAA)
        if (isinstance(_payload, bytes) and len(_payload) > 0
                and _payload[0] == 0xAA):
            continue
        # Sequences (tuple of step tuples) are kept - their first step's
        # bytes are the command marker. Sequences don't use the AA prefix.
        _RELIABLE_COMMANDS.append((_cat_idx, _cmd))

# Silent mode mutes the CLUE's piezo chime. Toggled with a long press on A.
# Stored in a single-element list so button handlers can mutate without
# needing `global`.
_silent_mode = [False]


def toggle_silent(status_setter):
    '''Flip silent mode and show brief confirmation in the status bar.'''
    _silent_mode[0] = not _silent_mode[0]
    if _silent_mode[0]:
        status_setter("Silent ON", 0xFFAA00)
    else:
        status_setter("Silent OFF", 0x40C0FF)


# --- Display sleep management ---
# When no buttons have been pressed or commands fired within
# DISPLAY_SLEEP_TIMEOUT_S, the TFT backlight turns off to save power.
# Any button press wakes it immediately.
#
# Primary mechanism: display.brightness = 0.0, which on the CLUE drives
# the backlight PWM pin to 0% duty cycle.
_last_activity_time = [time.monotonic()]
_display_sleeping = [False]


def note_activity():
    '''Mark the current moment as user-active - wake display if sleeping.'''
    _last_activity_time[0] = time.monotonic()
    if _display_sleeping[0]:
        display.brightness = DISPLAY_ACTIVE_BRIGHTNESS
        _display_sleeping[0] = False
        print(f"[DISPLAY] wake at t={time.monotonic():.1f}s")


def check_display_sleep():
    '''Called every loop iteration - put display to sleep if idle too long.'''
    if _display_sleeping[0]:
        return
    idle_s = time.monotonic() - _last_activity_time[0]
    if idle_s >= DISPLAY_SLEEP_TIMEOUT_S:
        display.brightness = 0.0
        _display_sleeping[0] = True
        print(f"[DISPLAY] sleep at t={time.monotonic():.1f}s"
              f" (idle for {idle_s:.0f}s)")


def enter_light_sleep():
    '''Put the CLUE into light sleep. Wakes on A or B button press.

    Light sleep suspends the running program until an alarm fires.
    Unlike deep sleep, Python state is preserved - selected category,
    silent mode, etc. all stay in RAM. We use light sleep (not deep
    sleep) because CP 10.1.4 deep sleep on nRF52 has known reliability
    issues; light sleep works correctly and gives meaningful power
    savings for wearable-scale sessions.

    Returns the two new PinAlarm objects so the caller can deinit them
    and re-setup button handling after wake. This function does NOT
    reinit the buttons itself (doing so requires module-scope
    reassignment which complicates the function signature).
    '''
    # Fade out chime speaker if it was running (shouldn't be, but safe)
    speaker.duty_cycle = 0
    # Turn off onboard status pixel
    pixel.fill((0, 0, 0))
    # Turn off display backlight
    display.brightness = 0.0

    # Release the digital pins before setting up PinAlarm on the same
    # pins. The adafruit_debouncer.Button wrapper doesn't have deinit()
    # itself - we only need to release the underlying DigitalInOut
    # objects (btn_a_io and btn_b_io).
    btn_a_io.deinit()
    btn_b_io.deinit()

    # Wait for both buttons to actually be released before arming the
    # PinAlarms. Without this pause, the still-held state of the triggering
    # buttons would fire the wake alarm immediately (level-triggered alarms
    # fire as soon as they see the "pressed" state, which is what started
    # the sleep in the first place).
    # Brief temporary reads to detect release
    _wait_release_a = digitalio.DigitalInOut(board.BUTTON_A)
    _wait_release_a.switch_to_input(pull=digitalio.Pull.UP)
    _wait_release_b = digitalio.DigitalInOut(board.BUTTON_B)
    _wait_release_b.switch_to_input(pull=digitalio.Pull.UP)
    # Buttons are active-low: .value == True means released
    _release_deadline = time.monotonic() + 3.0  # safety cap
    while time.monotonic() < _release_deadline:
        if _wait_release_a.value and _wait_release_b.value:
            break
        time.sleep(0.05)
    _wait_release_a.deinit()
    _wait_release_b.deinit()

    # Configure pin alarms on both buttons. NRF requires level-triggered
    # (edge=False) with value=False (active low since buttons pull to
    # ground when pressed) and pull=True (enable internal pull-up).
    pin_alarm_a = alarm.pin.PinAlarm(
        pin=board.BUTTON_A, value=False, pull=True)
    pin_alarm_b = alarm.pin.PinAlarm(
        pin=board.BUTTON_B, value=False, pull=True)

    print("[LIGHT SLEEP] entering")
    # Blocks here until an alarm fires. On wake, execution resumes.
    alarm.light_sleep_until_alarms(pin_alarm_a, pin_alarm_b)
    print("[LIGHT SLEEP] woken")

    # PinAlarm objects don't expose deinit() - they release their pins
    # when garbage collected. Drop the references and force a gc pass
    # so the pins are available for DigitalInOut recreation by the
    # caller.
    del pin_alarm_a
    del pin_alarm_b
    gc.collect()


def pick_random_command():
    '''Pick a random reliable command from the no-ping-needed pool.

    Falls back to the full library if nothing is marked reliable.
    '''
    if _RELIABLE_COMMANDS:
        return _RELIABLE_COMMANDS[random.randint(0, len(_RELIABLE_COMMANDS) - 1)]
    cat_idx = random.randint(0, len(_PALETTE) - 1)
    commands = _PALETTE[cat_idx][1]
    command = commands[random.randint(0, len(commands) - 1)]
    return cat_idx, command


def shake_magnitude():
    '''Return the current accelerometer magnitude in m/s^2.'''
    a_x, a_y, a_z = accel.acceleration
    return (a_x * a_x + a_y * a_y + a_z * a_z) ** 0.5


def enter_list(cat_idx):
    '''Switch to list view for the given category index.'''
    gc.collect()
    name, commands = _PALETTE[cat_idx]
    list_view.load_category(cat_idx, name, commands)
    display.root_group = list_view.group


def enter_grid():
    '''Switch back to the grid view.'''
    display.root_group = grid_view.group


def enter_confirm(name):
    '''Switch to the confirm modal for a random-picked command.'''
    confirm_view.set_command(name)
    display.root_group = confirm_view.group


def handle_grid(last_shake_time):
    '''Input handling while the grid view is active.'''
    if button_b.long_press:
        fire_off(grid_view.set_status)
        return _STATE_GRID, last_shake_time, None, None
    if button_a.short_count == 3:
        toggle_silent(grid_view.set_status)
        return _STATE_GRID, last_shake_time, None, None
    if button_a.short_count == 2:
        enter_list(grid_view.selected)
        return _STATE_LIST, last_shake_time, None, None
    if button_a.short_count == 1:
        grid_view.prev_tile()
    if button_b.short_count == 1:
        grid_view.next_tile()
    now = time.monotonic()
    if shake_magnitude() > _SHAKE_THRESHOLD and now - last_shake_time > _SHAKE_COOLDOWN:
        cat_idx, command = pick_random_command()
        grid_view.set_tile(cat_idx)
        enter_confirm(command[0])
        return _STATE_CONFIRM, now, command, _STATE_GRID
    return _STATE_GRID, last_shake_time, None, None


def handle_list(last_shake_time):
    '''Input handling while the list view is active.

    Single-exit cascade: each branch sets `result`, then returns at the
    bottom. Keeps return count under the lint limit while preserving
    the early-exit semantics via `done`.
    '''
    result = (_STATE_LIST, last_shake_time, None, None)
    done = False
    if button_b.long_press:
        fire_off(list_view.set_status)
        done = True
    elif button_a.short_count == 3:
        toggle_silent(list_view.set_status)
        done = True
    elif button_a.short_count == 2:
        command = list_view.selected_command
        if command is not None:
            fire_command(command, list_view.set_status)
            # Listen mode sentinel - run_listen_mode() has already
            # swapped the display to grid_view, so update state too.
            if command[1] == b"LISTEN":
                result = (_STATE_GRID, last_shake_time, None, None)
        done = True
    elif button_b.short_count == 2:
        enter_grid()
        result = (_STATE_GRID, last_shake_time, None, None)
        done = True
    if not done:
        if button_a.short_count == 1:
            list_view.scroll_up()
        if button_b.short_count == 1:
            list_view.scroll_down()
        now = time.monotonic()
        if (shake_magnitude() > _SHAKE_THRESHOLD
                and now - last_shake_time > _SHAKE_COOLDOWN):
            _cat_idx, command = pick_random_command()
            enter_confirm(command[0])
            result = (_STATE_CONFIRM, now, command, _STATE_LIST)
    return result

def handle_confirm(pending, return_state, last_shake_time):
    '''Input handling while the confirm modal is active.'''
    if button_a.short_count == 2:
        setter = list_view.set_status if return_state == _STATE_LIST else grid_view.set_status
        if return_state == _STATE_LIST:
            display.root_group = list_view.group
        else:
            display.root_group = grid_view.group
        fire_command(pending, setter)
        return return_state, last_shake_time, None, None
    if button_b.short_count == 1:
        if return_state == _STATE_LIST:
            display.root_group = list_view.group
        else:
            display.root_group = grid_view.group
        return return_state, last_shake_time, None, None
    return _STATE_CONFIRM, last_shake_time, pending, return_state


state = _STATE_GRID
last_shake = 0.0
pending_command = None
pending_return = None

# Track when both A and B are pressed simultaneously for light sleep
# trigger. Requires a minimum hold time (~0.8s) so incidental button
# combos during normal use don't accidentally sleep the device.
_DUAL_HOLD_TRIGGER_S = 0.8
_dual_pressed_since = None

while True:
    button_a.update()
    button_b.update()

    # Detect A+B held for deep sleep. Uses .value (stable debounced state)
    # not .pressed (one-shot event). Hold both for _DUAL_HOLD_TRIGGER_S
    # to commit the sleep action.
    both_held = (not button_a.value) and (not button_b.value)
    if both_held:
        if _dual_pressed_since is None:
            _dual_pressed_since = time.monotonic()
        elif time.monotonic() - _dual_pressed_since >= _DUAL_HOLD_TRIGGER_S:
            grid_view.set_status("Sleep...", 0xFF4080)
            list_view.set_status("Sleep...", 0xFF4080)
            # Wait for user to release BOTH buttons before starting
            # light sleep. If we sleep while buttons are still held,
            # the PinAlarm (level-triggered on value=False) would
            # immediately fire and wake us right back up.
            while not button_a.value or not button_b.value:
                button_a.update()
                button_b.update()
                time.sleep(0.02)
            time.sleep(0.15)  # settle time to avoid bounce
            enter_light_sleep()
            # After wake, the button IO pins were deinit'd for PinAlarm
            # and need to be re-established for normal polling.
            btn_a_io = digitalio.DigitalInOut(board.BUTTON_A)
            btn_a_io.switch_to_input(pull=digitalio.Pull.UP)
            btn_b_io = digitalio.DigitalInOut(board.BUTTON_B)
            btn_b_io.switch_to_input(pull=digitalio.Pull.UP)
            button_a = Button(btn_a_io, value_when_pressed=False,
                              short_duration_ms=200, long_duration_ms=800)
            button_b = Button(btn_b_io, value_when_pressed=False,
                              short_duration_ms=200, long_duration_ms=800)
            # Restore the display and reset activity timer
            display.brightness = DISPLAY_ACTIVE_BRIGHTNESS
            _last_activity_time[0] = time.monotonic()
            _display_sleeping[0] = False
            grid_view.set_status("Awake!", 0x40C0FF)
            list_view.set_status("Awake!", 0x40C0FF)
            _dual_pressed_since = None
            # Skip the rest of this frame so handlers don't see stale
            # button state from the wake press
            continue
        # While both are held (but not yet DUAL_HOLD threshold), skip
        # individual button handlers so they don't fire silent-toggle
        # or similar from the collateral press.
        check_display_sleep()
        time.sleep(0.02)
        continue
    _dual_pressed_since = None

    # Wake display on any button activity
    if (button_a.short_count > 0 or button_b.short_count > 0
            or button_a.long_press or button_b.long_press):
        note_activity()

    if state == _STATE_GRID:
        state, last_shake, pending_command, pending_return = handle_grid(last_shake)
    elif state == _STATE_LIST:
        state, last_shake, pending_command, pending_return = handle_list(last_shake)
    else:
        state, last_shake, pending_command, pending_return = handle_confirm(
            pending_command, pending_return, last_shake,
        )
    check_display_sleep()
    time.sleep(0.02)

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''Display views for the CLUE MagicBand+ remote.

Three views share the 240x240 TFT through root-group swaps:
  - GridView: 2-col x 3-row grid of category tiles
  - ListView: scrollable command list for a category
  - ConfirmView: modal confirmation for shake-fired random commands
'''
# Target: Adafruit CLUE (nRF52840) - the BLE remote
import displayio
import terminalio
from adafruit_display_shapes.rect import Rect
from adafruit_display_text.label import Label

_W = 240
_H = 240
_TITLE_H = 24
_STATUS_H = 20

_BG = 0x000000
_FG = 0xFFFFFF
_DIM = 0x404040
_HIGHLIGHT = 0xFF00FF
_ACCENT = 0x00FFFF


class GridView:
    '''Four-tile category grid displayed at startup.'''

    def __init__(self, categories):
        self._categories = categories
        self._selected = 0
        self._group = displayio.Group()
        title = Label(
            terminalio.FONT, text="MagicBand+",
            color=_ACCENT, x=36, y=16,
        )
        title.scale = 2
        self._group.append(title)
        self._tile_rects = []
        self._tile_labels = []
        self._build_tiles()
        self._status = Label(
            terminalio.FONT, text="A/B: select  2xA: open",
            color=_DIM, x=20, y=_H - 10,
        )
        self._group.append(self._status)
        self._refresh()

    @property
    def group(self):
        '''The displayio.Group root for this view.'''
        return self._group

    @property
    def selected(self):
        '''Index of the currently selected tile.'''
        return self._selected

    def next_tile(self):
        '''Move highlight to the next tile (wraps).'''
        self._selected = (self._selected + 1) % len(self._categories)
        self._refresh()

    def prev_tile(self):
        '''Move highlight to the previous tile (wraps).'''
        self._selected = (self._selected - 1) % len(self._categories)
        self._refresh()

    def set_tile(self, idx):
        '''Set the highlighted tile by index.'''
        if 0 <= idx < len(self._categories):
            self._selected = idx
            self._refresh()

    def set_status(self, text, color=_DIM):
        '''Update the bottom status line.'''
        self._status.text = text
        self._status.color = color

    def _build_tiles(self):
        # 2x2 grid with larger tiles now that we have 4 categories
        cell_w = _W // 2
        cell_h = (_H - _TITLE_H - _STATUS_H - 8) // 2
        tile_inner_w = cell_w - 8
        for idx, (name, _commands) in enumerate(self._categories):
            col = idx % 2
            row = idx // 2
            x = col * cell_w + 4
            y = _TITLE_H + 4 + row * (cell_h + 4)
            rect = Rect(x, y, tile_inner_w, cell_h, outline=_DIM, stroke=2)
            label = Label(terminalio.FONT, text=name, color=_FG)
            # Pick the largest scale that fits horizontally with padding.
            # terminalio.FONT is 6px wide per char at scale 1.
            label_w_scale2 = len(name) * 12
            if label_w_scale2 + 12 <= tile_inner_w:
                label.scale = 2
                label_w = label_w_scale2
            else:
                label.scale = 1
                label_w = len(name) * 6
            label.x = x + (tile_inner_w - label_w) // 2
            label.y = y + cell_h // 2
            self._tile_rects.append(rect)
            self._tile_labels.append(label)
            self._group.append(rect)
            self._group.append(label)

    def _refresh(self):
        for idx, rect in enumerate(self._tile_rects):
            if idx == self._selected:
                rect.outline = _HIGHLIGHT
                self._tile_labels[idx].color = _HIGHLIGHT
            else:
                rect.outline = _DIM
                self._tile_labels[idx].color = _FG


class ListView:
    '''Scrollable command list for a single category.'''

    _VISIBLE_ROWS = 7
    _ROW_H = 22
    # Wide enough to fit scale=2 rendering of most names. Longer names
    # automatically fall back to scale=1 to preserve right-side padding.
    _MAX_CHARS_SCALE2 = 18

    def __init__(self):
        self._category_idx = 0
        self._category_name = ""
        self._commands = ()
        self._selected = 0
        self._scroll = 0
        self._group = displayio.Group()
        self._title = Label(
            terminalio.FONT, text="", color=_ACCENT, x=8, y=12,
        )
        self._group.append(self._title)
        self._rows = []
        for i in range(self._VISIBLE_ROWS):
            row = Label(
                terminalio.FONT, text="", color=_FG,
                x=12, y=_TITLE_H + 8 + i * self._ROW_H,
            )
            self._rows.append(row)
            self._group.append(row)
        self._status = Label(
            terminalio.FONT, text="A/B scroll  2xA fire  B-hold off",
            color=_DIM, x=8, y=_H - 10,
        )
        self._group.append(self._status)

    @property
    def group(self):
        '''The displayio.Group root for this view.'''
        return self._group

    @property
    def selected_command(self):
        '''The (name, payload, ping) tuple of the highlighted command.'''
        if not self._commands:
            return None
        return self._commands[self._selected]

    @property
    def category_idx(self):
        '''Index into CATEGORIES of the currently displayed list.'''
        return self._category_idx

    def load_category(self, idx, name, commands):
        '''Populate the list with the commands of one category.'''
        self._category_idx = idx
        self._category_name = name
        self._commands = commands
        self._selected = 0
        self._scroll = 0
        self._title.text = f"{name} ({len(commands)})"
        self._refresh()

    def scroll_up(self):
        '''Move selection up one row (wraps).'''
        if not self._commands:
            return
        self._selected = (self._selected - 1) % len(self._commands)
        self._adjust_scroll()
        self._refresh()

    def scroll_down(self):
        '''Move selection down one row (wraps).'''
        if not self._commands:
            return
        self._selected = (self._selected + 1) % len(self._commands)
        self._adjust_scroll()
        self._refresh()

    def set_status(self, text, color=_DIM):
        '''Update the bottom status line.'''
        self._status.text = text
        self._status.color = color

    def _adjust_scroll(self):
        if self._selected < self._scroll:
            self._scroll = self._selected
        elif self._selected >= self._scroll + self._VISIBLE_ROWS:
            self._scroll = self._selected - self._VISIBLE_ROWS + 1

    def _refresh(self):
        for i, row in enumerate(self._rows):
            cmd_idx = self._scroll + i
            if cmd_idx >= len(self._commands):
                row.text = ""
                continue
            name = self._commands[cmd_idx][0]
            marker = ">" if cmd_idx == self._selected else " "
            full = f"{marker}{name}"
            row.scale = 2 if len(full) <= self._MAX_CHARS_SCALE2 else 1
            row.text = full
            row.color = _HIGHLIGHT if cmd_idx == self._selected else _FG


class ConfirmView:
    '''Modal confirmation for shake-fired random commands.'''

    def __init__(self):
        self._group = displayio.Group()
        self._group.append(Label(
            terminalio.FONT, text="Shake! Fire this?",
            color=_ACCENT, x=50, y=40,
        ))
        self._command_label = Label(
            terminalio.FONT, text="", color=_HIGHLIGHT,
            x=20, y=110, scale=2,
        )
        self._group.append(self._command_label)
        self._group.append(Label(
            terminalio.FONT, text="2xA: Fire",
            color=_FG, x=8, y=200,
        ))
        self._group.append(Label(
            terminalio.FONT, text="B: Cancel",
            color=_FG, x=178, y=200,
        ))

    @property
    def group(self):
        '''The displayio.Group root for this view.'''
        return self._group

    def set_command(self, name):
        '''Set the command name shown in the confirm modal.'''
        self._command_label.text = name


class ListenView:
    '''BLE listening / capture view. Minimal to keep memory low.'''

    def __init__(self):
        self._group = displayio.Group()
        title = Label(
            terminalio.FONT, text="Listen Mode",
            color=_ACCENT, x=36, y=16,
        )
        title.scale = 2
        self._group.append(title)
        # One label for all stats - updated less often than per-field labels
        # to reduce bitmap allocation churn. Pre-allocated with worst-case
        # length string so re-rendering reuses the same bitmap.
        # 18 chars at scale 2 = 216px wide, fits on 240px display
        self._stats_label = Label(
            terminalio.FONT,
            text="                  ",  # 18 chars padding
            color=_FG, x=8, y=72,
        )
        self._stats_label.scale = 2
        self._group.append(self._stats_label)
        self._status = Label(
            terminalio.FONT,
            text="                              ",
            color=_DIM, x=8, y=_H - 10,
        )
        self._group.append(self._status)
        self._status.text = "Hold B to stop"

    @property
    def group(self):
        '''The displayio.Group root for this view.'''
        return self._group

    def update_stats(self, elapsed_s, total, unique, _last_rssi, _rate=None):
        '''Update the stats label with the current capture summary.

        last_rssi/rate are accepted for caller-API stability but not shown
        on screen at scale 2 - the 240px display only fits the compact
        "Ns U/T" format. Underscore prefix marks them as intentionally
        unused for the linter.
        '''
        # Compact format that fits at scale 2 on the 240px display.
        # 18 chars * 12px = 216px, leaves margin.
        # Format: "{seconds}s {unique}/{total}"  e.g. "47s 12/823"
        text = f"{int(elapsed_s)}s {unique}/{total}"
        # Pad to 18 chars to keep bitmap allocation stable
        self._stats_label.text = f"{text:<18s}"

    def set_status(self, text, color=_DIM):
        '''Update the bottom status line.'''
        # Status stays at scale 1 (smaller), pad to ~30 chars
        self._status.text = f"{text:<30s}"
        self._status.color = color

_STATE_GRID = 0
_STATE_LIST = 1
_STATE_CONFIRM = 2

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''Named MagicBand+ command library organized into categories.

Each command is a (name, payload, needs_ping) tuple where needs_ping is
True if a 0.5s CC03 wake ping should be broadcast before the real command
to prime the band's receiver. Commands observed to latch reliably on first
try are marked False. The transmitter prepends the 0x0183 Disney CID to
payload bytes when advertising.
'''
# Target: Adafruit CLUE (nRF52840) - the BLE remote
from magicband_protocol import (
    PALETTE_NAMES,
    build_dual_color,
    build_single_color,
)

# Wake-ping broadcast continuously by park beacons. Keeps the band's radio
# in high-response mode so the real command latches on the first shot.
PING_PAYLOAD = bytes.fromhex("cc03000000")

# OFF/cancel command. No pre-ping so cancellation is immediate.
OFF_COMMAND = ("Off", build_single_color(0x1D), False)

# Palette slots that look identical to another, produce no visible effect
# on the band, or duplicate other menu actions. 0x1D (Off) is redundant
# with the B-hold cancel shortcut; 0x1E (Unique) has no visible effect.
_SKIPPED_PALETTE = (0x09, 0x0C, 0x17, 0x18, 0x1C, 0x1D, 0x1E)

# Singles confirmed to latch first-try on a real band (no ping needed).
_RELIABLE_SINGLES = {0x02, 0x05}

SINGLE_COLOR = tuple(
    (name, build_single_color(idx), idx not in _RELIABLE_SINGLES)
    for idx, name in enumerate(PALETTE_NAMES)
    if idx not in _SKIPPED_PALETTE
)

DUAL_COLOR = (
    ("Red & Blue", build_dual_color(0x15, 0x02), True),
    ("Orange & Cyan", build_dual_color(0x13, 0x16), False),
    ("Pink & Lime", build_dual_color(0x08, 0x12), True),
    ("Purple & Yellow", build_dual_color(0x01, 0x0F), True),
    ("Green & Red", build_dual_color(0x19, 0x15), False),
    ("Cyan & Orange", build_dual_color(0x16, 0x13), True),
    ("White & Blue", build_dual_color(0x1B, 0x02), True),
    ("Lavender & Pink", build_dual_color(0x06, 0x08), True),
)

# Combined Colors category - Dual Color pairs first (more visually striking)
# followed by Single Color palette entries.
COLORS = DUAL_COLOR + SINGLE_COLOR

# All captured park show codes latch first-try - they're the packets the
# band's firmware was specifically designed to recognize.
# The * suffix marks commands that trigger the band's vibration motor.
SHOW_FX = (
    ("Taste the Rainbow",
     bytes.fromhex("e100e90c000f0f5d465bf005323748b0"), False),
    ("Blink White *",
     bytes.fromhex("e100e90c000f0f5d465bf00532374895"), False),
    # Orange Blink's timing byte (0xEF) has the always-on flag set, so this
    # command runs indefinitely until another command or OFF is sent. The
    # other E9 0C shows use timing 0x0F for ~29s runtime then auto-stop.
    # Intentional: Orange Blink doubles as a persistent "alert mode" beacon.
    ("Orange Blink *",
     bytes.fromhex("e100e90c00ef0f4f4f5bf0fb14374895"), False),
    ("5 Palette Cycle",
     bytes.fromhex("e100e90c000f0fb1b9b5b1a2307b7db0"), False),
    # DCL Rainbow - cloned from 5 Palette Cycle with DCL brand colors
    # and long buzz. Navy / Yellow / Red / Navy / Yellow.
    ("DCL Rainbow *",
     bytes.fromhex("e100e90c000f0fa3afb5a3af307b7db7"), False),
    # Custom sub-protocol: Ears Battery shows the QT Py wearable's
    # current battery level on its NeoPixel jewels (not visible on
    # the CLUE itself - this is a remote trigger for the receiver).
    ("Ears Battery",
     bytes.fromhex("aa4201"), False),
    # Custom sub-protocol: cycle the QT Py ears through their
    # brightness presets (dim / medium / bright). Useful between
    # daytime and night usage without touching the headband.
    ("Ears Brightness",
     bytes.fromhex("aa4203"), False),
    # Custom sub-protocol: "Find Me" stroller/scooter beacon. Triggers
    # a ~30 second high-visibility 3-phase animation on the wearable
    # (strobe, rainbow chase, breathing) at maximum brightness so you
    # can spot a parked stroller, wheelchair, or EV scooter from across
    # a busy parking lot. Forces max brightness regardless of preset,
    # then restores the preset after the animation ends.
    ("Find Me",
     bytes.fromhex("aa4204"), False),
    # Custom sub-protocol: preview the Fab 50 statue golden-swirl
    # animation on demand. Same animation that real Magic Kingdom
    # statue beacons trigger on the receiver - useful for video shoots
    # and demos without needing a statue beacon nearby.
    ("Ears Statue",
     bytes.fromhex("aa4205"), False),
    # Sentinel entry: when fired, code.py recognizes the LISTEN_MODE
    # marker and transitions to listen-mode UI instead of broadcasting.
    # Captures all unique Disney 0x0183 packets to a file. Useful for
    # reverse-engineering new park show packets (Spaceship Earth,
    # Starlight Parade, etc.).
    ("Listen Mode",
     b"LISTEN", False),
)

# Cross fades 3 and 5 use scaler=0 timing and latch first-try. The others
# use scaler=1 (3.1x multiplier) for long park-show durations and need
# the wake ping to prime the receiver.
CROSS_FADE = (
    ("Cyan to Pink",
     bytes.fromhex("e100e911006f0f564858f44882d1460208d06500b0"), True),
    ("Blue to Yellow",
     bytes.fromhex("e200e911004f0f444f58f44882d1460607d06543b0"), True),
    ("Pink to Green",
     bytes.fromhex("e100e911000f0f485958f44882d146020dd06505b0"), False),
    ("Orange to Red",
     bytes.fromhex("e200e911004f0f4f5558f44882d146022ad06501b0"), True),
    ("Lime to Purple",
     bytes.fromhex("e100e91100010f5a475bf03134374894d13d0507b0"), False),
    ("Red to Off",
     bytes.fromhex("e100e91100070f555d58f44882d1460508d06500b0"), True),
    ("Orange to Blue",
     bytes.fromhex("e100e91100440f514258f44882d146050fd06500b0"), True),
)

ANIMATIONS = (
    # Renamed from Circle w/ Vibration. Last byte changed B0 -> B8 to enable
    # the 6-short-tap vibration pattern (same as working Animation 0F-1).
    # The * suffix marks commands that trigger the band's vibration motor.
    ("Blue Circle *",
     bytes.fromhex("e200e91200030fa2a2a4a4a230d037f4d2460064fcb8"), True),
    ("Purple Flash *",
     bytes.fromhex("e100e90e00010fbda0a0bda059070048aeb5"), True),
    # Crop Dust Fart as a 2-step sequence: the E9 0E tap animation runs
    # for ~3.5s with its 0x8 rapid taps, then a 2-second long buzz (0x7)
    # in orange punctuates the end. Orange finale matches the "gas cloud"
    # theme without being jarring after the band's own color animation.
    ("Crop Dust Fart *",
     ((bytes.fromhex("e100e90e00110fbca7b9a7b959190248aeb8"), 3.5, (100, 80, 0)),
      (bytes.fromhex("e100e90500090e13b7"), 2.5, (200, 100, 0))),
     False),
    ("Blue & Orange *",
     bytes.fromhex("e100e90f00110f4f425807488dd2462a0717b8"), True),
    ("Blue Sparkle",
     bytes.fromhex("e100e91000134897d00ea0d146060f30d04e07b0"), True),
    # E9 13 is a firmware-baked animation that renders as a purple pulse on
    # real bands, despite its byte payload suggesting a multi-color mix.
    ("Purple Pulse",
     bytes.fromhex("e100e9130002d037f0d23d0505000efa8983510ee7a0b0"), True),
    ("Holiday Flash",
     bytes.fromhex("e200e91400420f555b58f44882d0651bd1462a02307b5db0"), False),
)

CATEGORIES = (
    ("Colors", COLORS),
    ("Show FX", SHOW_FX),
    ("Fades", CROSS_FADE),
    ("Animate", ANIMATIONS),
)

SHOW_FX = (
    ("Taste the Rainbow",
     bytes.fromhex("e100e90c000f0f5d465bf005323748b0"), False),
    ("DCL Rainbow *",
     bytes.fromhex("e100e90c000f0fa3afb5a3af307b7db7"), False),
    ("Ears Battery",
     bytes.fromhex("aa4201"), False),
    ("Ears Brightness",
     bytes.fromhex("aa4203"), False),
    ("Ears Statue",
     bytes.fromhex("aa4205"), False),
    ("Listen Mode",
     b"LISTEN", False),
)

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''MagicBand+ BLE protocol constants and helpers.

Shared between the CLUE transmitter and the QT Py S3 receiver. Based on the
reverse-engineering work at:
  https://emcot.world/Disney_MagicBand%2B_Bluetooth_Codes

All command payloads stored here are the manufacturer-data portion only (the
bytes after the 0x0183 Disney CID). The transmitter prepends the CID bytes
when building a BLE advertisement packet.
'''
# Target: shared between the Adafruit CLUE (BLE remote) and the Adafruit
# QT Py ESP32-S3 (BLE Beacon Ears) - copy this file to both boards.

# Disney's Bluetooth SIG company identifier.
DISNEY_CID = 0x0183

# 5-bit color palette. Values are RGB approximations calibrated for how the
# colors look on a NeoPixel Jewel at low brightness (~0.05). Green and blue
# channels look brighter per unit input than red on WS2812B LEDs, so cyan
# values have their red channel boosted to compensate, and blue hues get
# pushed toward their characteristic hue rather than a balanced RGB.
PALETTE_RGB = (
    (80, 255, 255),   # 0x00 cyan (red channel boosted so it's not pure teal)
    (180, 0, 255),    # 0x01 purple
    (0, 0, 255),      # 0x02 blue
    (0, 20, 120),     # 0x03 midnight blue (touch of green stops it looking black)
    (40, 120, 255),   # 0x04 blue 2
    (200, 80, 255),   # 0x05 bright purple
    (200, 180, 255),  # 0x06 lavender
    (120, 0, 255),    # 0x07 deep purple
    (255, 60, 180),   # 0x08 pink
    (255, 70, 170),   # 0x09 pink 2
    (255, 80, 160),   # 0x0A pink 3
    (255, 90, 150),   # 0x0B pink 4
    (255, 110, 150),  # 0x0C pink 5
    (255, 130, 160),  # 0x0D pink 6
    (255, 160, 170),  # 0x0E pink 7
    (255, 180, 0),    # 0x0F yellow orange
    (255, 220, 0),    # 0x10 off yellow
    (255, 140, 20),   # 0x11 yellow orange 2
    (180, 255, 0),    # 0x12 lime
    (255, 90, 0),     # 0x13 orange
    (255, 40, 0),     # 0x14 red orange
    (255, 0, 0),      # 0x15 red
    (60, 255, 255),   # 0x16 cyan 2 (red boost for distinctness from green)
    (40, 240, 255),   # 0x17 cyan 3
    (20, 200, 255),   # 0x18 cyan 4 (shifts more toward blue)
    (0, 255, 0),      # 0x19 green
    (80, 255, 40),    # 0x1A lime green
    (255, 200, 180),  # 0x1B white (warm white avoids blue cast at low levels)
    (255, 200, 180),  # 0x1C white 2
    (0, 0, 0),        # 0x1D off
    (255, 140, 60),   # 0x1E unique
    (255, 0, 255),    # 0x1F random / magenta
)

PALETTE_NAMES = (
    "Cyan", "Purple", "Blue", "Midnight Blue",
    "Blue 2", "Bright Purple", "Lavender", "Deep Purple",
    "Pink", "Pink 2", "Pink 3", "Pink 4",
    "Pink 5", "Pink 6", "Pink 7", "Yellow Orange",
    "Off Yellow", "Yellow Orange 2", "Lime", "Orange",
    "Red Orange", "Red", "Cyan 2", "Cyan 3",
    "Cyan 4", "Green", "Lime Green", "White",
    "White 2", "Off", "Unique", "Random",
)

# Mask palette: which of the 5 LEDs light up for a given 3-bit mask.
# Tuple order: (center, top_left, top_right, bottom_left, bottom_right)
MASK_LEDS = {
    0b000: (1, 1, 1, 1, 1),
    0b001: (0, 0, 1, 0, 0),
    0b010: (0, 0, 0, 0, 1),
    0b011: (0, 0, 0, 1, 0),
    0b100: (0, 1, 0, 0, 0),
    0b101: (1, 1, 1, 1, 1),
    0b110: (0, 0, 1, 0, 0),
    0b111: (1, 1, 1, 1, 1),
}


def decode_timing(byte):
    '''Turn the timing byte into a dict of animation parameters.'''
    scaler_b = bool(byte & 0x40)
    time_val = byte & 0x0F
    if scaler_b:
        seconds = 3.1 * time_val + 5.5
    else:
        seconds = 1.5 * time_val + 6.5
    return {
        "always_on": bool(byte & 0x80),
        "fade_code": (byte >> 4) & 0x03,
        "seconds": seconds,
    }


def build_single_color(palette_idx, mask=0, vibration=0, timing=0x09):
    '''Build an E9 05 single-color-from-palette command payload.'''
    color_byte = ((mask & 0x07) << 5) | (palette_idx & 0x1F)
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE1, 0x00, 0xE9, 0x05, 0x00, timing, 0x0E,
                  color_byte, vib_byte))


def build_dual_color(inner_idx, outer_idx, vibration=0, timing=0x22):
    '''Build an E9 06 dual-color command payload.

    Note: the emcot wiki spec text says the top 3 bits of each color byte
    should be 0b100, but the wiki's own example payloads use 0b010. Using
    0b100 causes the top-left LED to be masked off (same bits the E9 05
    mask palette uses for "top left only"). The correct working value
    per the captured examples is 0b010 / 0x40.
    '''
    inner_byte = 0x40 | (inner_idx & 0x1F)
    outer_byte = 0x40 | (outer_idx & 0x1F)
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE2, 0x00, 0xE9, 0x06, 0x00, timing, 0x0F,
                  inner_byte, outer_byte, vib_byte))


def build_six_bit_color(red, green, blue, vibration=0, timing=0x0E):
    '''Build an E9 08 raw 6-bit RGB command payload.'''
    red_byte = (red & 0x3F) << 1
    green_byte = (green & 0x3F) << 1
    blue_byte = (blue & 0x3F) << 1
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE1, 0x00, 0xE9, 0x08, 0x00, timing, 0xD2, 0x55,
                  red_byte, green_byte, blue_byte, vib_byte))


def build_five_color(center, top_left, bottom_left, bottom_right, top_right,
                    vibration=0, timing=0x0E):
    '''Build an E9 09 five-color-palette command payload.

    Each of the band's 5 LEDs gets its own palette slot. Order matches the
    emcot wiki byte order: center, bottom-left, bottom-right, top-right,
    top-left (reading outer ring counter-clockwise from top-left).
    '''
    def _color_byte(idx):
        return 0xA0 | (idx & 0x1F)
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE1, 0x00, 0xE9, 0x09, 0x00, timing, 0x0F,
                  _color_byte(top_left),
                  _color_byte(bottom_left),
                  _color_byte(bottom_right),
                  _color_byte(top_right),
                  _color_byte(center),
                  vib_byte))


# Starlight Bubble Wand BLE protocol (reverse-engineered April 2026).
# 13-byte packets. First 6 bytes are a fixed signature identifying the
# wand and the "cast color" command. Bytes 6-11 contain a rolling code
# (probably anti-replay authentication) that changes on every broadcast.
# Byte 12 is the palette index - same table as the MagicBand+ palette.
#
# We only check the first 6 bytes to recognize a wand packet. The rolling
# middle bytes cannot be replayed (they would fail the wand's own checks
# if sent back), so we read them but don't try to decode or broadcast
# them ourselves.
WAND_SIGNATURE = bytes.fromhex("cf0b00c42022")
WAND_PAYLOAD_LENGTH = 13
WAND_COLOR_INDEX = 12


def is_wand_packet(payload):
    '''Return True if this payload is a Starlight Bubble Wand cast.'''
    return (len(payload) == WAND_PAYLOAD_LENGTH
            and bytes(payload[:len(WAND_SIGNATURE)]) == WAND_SIGNATURE)


def parse_wand(payload):
    '''Decode a wand cast packet into a structured command dict.'''
    if not is_wand_packet(payload):
        return None
    palette_idx = payload[WAND_COLOR_INDEX] & 0x1F
    return {
        "kind": "wand_cast",
        "palette_idx": palette_idx,
        "raw": bytes(payload),
    }


# Fab 50 statue beacons. The Disney Fab 50 golden statues placed around
# Magic Kingdom broadcast 0xC4 packets to assist guest location services.
# Two sub-formats: C4 10 (18 bytes) and C4 15 (22 bytes). Both contain
# an ASCII 2-digit statue ID at offset 15-16 (e.g. "53", "40", "24").
# Triggering a golden-swirl animation when these are detected gives the
# wearable a thematic "the statue sees you" reaction.
_STATUE_PREFIX = bytes.fromhex("c4")


def _is_statue_beacon(payload):
    '''Return True if this payload looks like a Fab 50 statue beacon.'''
    if not payload or payload[0] != 0xC4:
        return False
    # Two known formats: C4 10 (18 bytes) and C4 15 (23 bytes)
    return len(payload) in (18, 23)


def _parse_statue_beacon(payload):
    '''Decode a statue beacon to extract its 2-digit ASCII identifier.'''
    statue_id = "?"
    # Statue ID is at offset 15-16 in both 18- and 22-byte variants
    if len(payload) >= 17:
        try:
            statue_id = bytes(payload[15:17]).decode("ascii")
        except (UnicodeError, ValueError):
            statue_id = "?"
    return {
        "kind": "statue_beacon",
        "statue_id": statue_id,
        "raw": bytes(payload),
    }


# Park show command opcodes - direct E9/EA family with no E1 00 wrapper.
# Captured from Disney park show infrastructure (Epcot, April 2026). These
# coexist with guest-fired E1/E2 commands but use a different byte layout.
# Long-format variants (E9 10, E9 13, EA 14) share a `f4 48 82` signature
# in the middle of the payload; their byte structure isn't fully decoded
# yet. The E9 08 short form decodes cleanly as a 5-slot palette command.
_SHOW_OPCODE_LABELS = {
    (0xE9, 0x04): "E9 04",
    (0xE9, 0x08): "E9 08 5-slot",
    (0xE9, 0x10): "E9 10",
    (0xE9, 0x13): "E9 13",
    (0xEA, 0x14): "EA 14",
}


def _parse_show_command(payload):
    '''Parse a direct E9/EA show packet captured from park infrastructure.'''
    if len(payload) < 2:
        return None
    head = payload[0]
    sub = payload[1]
    label = _SHOW_OPCODE_LABELS.get((head, sub))
    if label is None:
        return None
    # E9 08 short form is a 5-slot palette command. Bytes 5-9 are masked
    # with 0x1F to extract palette indices, identical to the existing E9
    # 09 five-color decode. Confirmed by capture 9 (blue green) decoding
    # to Cyan/Blue 2/Green/Green/Blue 2 - matching the observed color.
    slots = None
    if (head == 0xE9 and sub == 0x08
            and len(payload) >= 10 and payload[4] == 0x0F):
        slots = [payload[5 + i] & 0x1F for i in range(5)]
    return {
        "kind": "show_command",
        "label": label,
        "head": head,
        "sub": sub,
        "slots": slots,
        "raw": bytes(payload),
    }


def _parse_by_head(payload):
    '''Decode a payload that's not a wand cast or statue beacon.'''
    head = payload[0]
    if head == 0xCC:
        return {"kind": "ping", "raw": payload}
    if head in (0xE9, 0xEA):
        show_cmd = _parse_show_command(payload)
        if show_cmd is not None:
            return show_cmd
    if head in (0xE1, 0xE2):
        return _parse_e1_e2(payload)
    return {"kind": "unknown", "raw": payload}


def parse(payload):
    '''Decode a manufacturer-data payload into a structured command dict.

    Used by the QT Py receiver to interpret commands from MagicBands, the
    CLUE remote, the Starlight Bubble Wand, and Disney park infrastructure
    (Fab 50 statues, parade beacons).
    '''
    if not payload:
        return None
    # Wand packets have a distinctive 6-byte header signature
    wand = parse_wand(payload)
    if wand is not None:
        return wand
    # Fab 50 statue beacons (Magic Kingdom hub area)
    if _is_statue_beacon(payload):
        return _parse_statue_beacon(payload)
    return _parse_by_head(payload)


def _parse_single_color(payload):
    color_byte = payload[7]
    return {
        "kind": "single_color",
        "mask": (color_byte >> 5) & 0x07,
        "palette_idx": color_byte & 0x1F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[8] & 0x0F,
    }


def _parse_dual_color(payload):
    return {
        "kind": "dual_color",
        "inner_idx": payload[7] & 0x1F,
        "outer_idx": payload[8] & 0x1F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[9] & 0x0F,
    }


def _parse_six_bit(payload):
    return {
        "kind": "six_bit_color",
        "red": (payload[8] >> 1) & 0x3F,
        "green": (payload[9] >> 1) & 0x3F,
        "blue": (payload[10] >> 1) & 0x3F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[11] & 0x0F,
    }


def _parse_five_color(payload):
    '''E9 09 layout: TL BL BR TR C VIB starting at index 7.'''
    return {
        "kind": "five_color",
        "top_left": payload[7] & 0x1F,
        "bottom_left": payload[8] & 0x1F,
        "bottom_right": payload[9] & 0x1F,
        "top_right": payload[10] & 0x1F,
        "center": payload[11] & 0x1F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[12] & 0x0F,
    }


# Function-code dispatch for E1/E2-wrapped payloads. Each entry maps
# the 2-byte function code (payload[2]<<8 | payload[3]) to (min_length,
# parser_or_kind). When the parser slot is a callable, it's invoked with
# the payload; when it's a string, a generic {"kind": ..., "raw": ...}
# dict is returned. Defined at module bottom so all _parse_* helpers
# already exist when this dict is built at import time.
_FUNC_CODE_DISPATCH = {
    0xE905: (9, _parse_single_color),
    0xE906: (10, _parse_dual_color),
    0xE908: (12, _parse_six_bit),
    0xE909: (13, _parse_five_color),
    0xE90C: (5, "show_fx"),
    0xE911: (5, "cross_fade"),
    # Newer parade/show command not in our protocol docs. We can't
    # decode the colors but still want the ears to react visibly.
    0xCD07: (5, "parade_command"),
}


def _parse_e1_e2(payload):
    '''Decode an E1/E2-wrapped payload by its function code.'''
    if len(payload) < 5:
        return {"kind": "unknown", "raw": payload}
    func = (payload[2] << 8) | payload[3]
    entry = _FUNC_CODE_DISPATCH.get(func)
    if entry is None:
        return {"kind": "animation", "func": func, "raw": payload}
    min_len, handler = entry
    if len(payload) < min_len:
        return {"kind": "animation", "func": func, "raw": payload}
    if callable(handler):
        return handler(payload)
    return {"kind": handler, "raw": payload}

DUAL_COLOR = (
    ("Red & Blue", build_dual_color(0x15, 0x02), True),
    ("Orange & Cyan", build_dual_color(0x13, 0x16), False),
    ("Pink & Lime", build_dual_color(0x08, 0x12), True),
    ("Purple & Yellow", build_dual_color(0x01, 0x0F), True),
    ...
)

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''MagicBand+ BLE transmitter for the Adafruit CLUE.

Wraps _bleio.adapter to broadcast raw advertisement packets with Disney's
0x0183 manufacturer company identifier. Works directly with the BLE stack
on the nRF52840 without going through adafruit_ble's Advertisement classes.
'''
# Target: Adafruit CLUE (nRF52840) - the BLE remote
import time
import _bleio

from magicband_protocol import DISNEY_CID

# BLE advertising interval in seconds. CircuitPython requires this to be
# in the range 0.02-10.24. We use 0.025 instead of 0.02 because float
# precision can cause 0.02 to internally evaluate as slightly less than
# the minimum, raising "interval must be in range" ValueError.
_AD_INTERVAL = 0.025

# Default broadcast duration. MagicBands latch a command within the first
# ~second, but the timing byte in the payload controls the actual fade so
# we can stop advertising well before the animation finishes.
_BROADCAST_SECONDS = 3.0


def _build_advertisement(payload):
    '''Assemble a 31-byte BLE advertisement packet with Disney manufacturer data.'''
    cid_lo = DISNEY_CID & 0xFF
    cid_hi = (DISNEY_CID >> 8) & 0xFF
    mfr_field_len = 3 + len(payload)
    return bytes((
        0x02, 0x01, 0x06,                      # Flags AD: LE General Discoverable
        mfr_field_len, 0xFF, cid_lo, cid_hi,   # Manufacturer data header
    )) + payload


def broadcast(payload, duration=_BROADCAST_SECONDS):
    '''Advertise a MagicBand+ manufacturer-data payload for duration seconds.'''
    packet = _build_advertisement(payload)
    adapter = _bleio.adapter
    if not adapter.enabled:
        adapter.enabled = True
    if adapter.advertising:
        adapter.stop_advertising()
    adapter.start_advertising(packet, connectable=False, interval=_AD_INTERVAL)
    time.sleep(duration)
    adapter.stop_advertising()

def broadcast(payload, duration=_BROADCAST_SECONDS):
    packet = _build_advertisement(payload)
    adapter = _bleio.adapter
    if not adapter.enabled:
        adapter.enabled = True
    if adapter.advertising:
        adapter.stop_advertising()
    adapter.start_advertising(packet, connectable=False, interval=_AD_INTERVAL)
    time.sleep(duration)
    adapter.stop_advertising()

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''CLUE boot configuration: optional Python-writable filesystem.

CircuitPython by default mounts CIRCUITPY as read-only when USB is
connected, so Python can't write files. To capture BLE packets to a
file (Listen Mode in code.py) while USB is connected, we need to flip
that.

Two ways to enter capture mode:

1. **Marker file**: drop a file named `capture_mode.txt` onto the
   CIRCUITPY drive while USB is connected, then reset. boot.py sees
   the marker and remounts the filesystem as Python-writable.

2. **NVM flag**: code.py can request "next boot in capture mode" via
   a byte in microcontroller.nvm. This survives reboots and works
   regardless of who currently owns the filesystem. boot.py also
   creates the marker file in this case so the user can see the
   mode is engaged.

To exit capture mode: open the REPL and run
    import os; os.remove("/capture_mode.txt")
then reset. The filesystem returns to host-writable.
'''
# Target: Adafruit CLUE (nRF52840) - the BLE remote
import os
import storage
import microcontroller

_MARKER = "/capture_mode.txt"
_NVM_FLAG_BYTE = 0  # NVM byte 0: 1 = request capture mode on this boot

marker_present = False
try:
    os.stat(_MARKER)
    marker_present = True
except OSError:
    pass

# NVM-requested capture mode: code.py wrote 1 to byte 0 to ask for
# capture mode on this boot. Honor it by remounting writable and
# creating the marker file (which clears the NVM flag for next time).
nvm_request = microcontroller.nvm[_NVM_FLAG_BYTE] == 1

if marker_present:
    storage.remount("/", readonly=False)
    print("[boot] Capture mode (marker file present)")
elif nvm_request:
    storage.remount("/", readonly=False)
    # Create the marker file so user can SEE that capture mode is active.
    # Content includes the literal REPL commands to undo it - paste-ready
    # without leading whitespace, so users who open the file in any text
    # editor can copy/paste directly into the serial REPL.
    try:
        with open(_MARKER, "w", encoding="utf-8") as f:
            f.write(
                "Capture mode active.\n"
                "This file makes CIRCUITPY Python-writable so Listen Mode\n"
                "can save captures. While this file exists, you CANNOT\n"
                "drag-drop new code onto the drive.\n"
                "\n"
                "To return to dev mode (drag-drop), open the serial REPL,\n"
                "press Ctrl+C to interrupt, then paste these lines:\n"
                "\n"
                "import os\n"
                "os.remove(\"/capture_mode.txt\")\n"
                "\n"
                "Then reset the CLUE.\n"
            )
        # Clear the NVM flag - we honored it
        microcontroller.nvm[_NVM_FLAG_BYTE] = 0
        print("[boot] Capture mode (NVM-requested, marker created)")
    except OSError as err:
        print(f"[boot] Capture mode requested but write failed: {err}")
else:
    print("[boot] Dev mode: USB host has filesystem write access")

def _listen_capture_loop(seen):
    ...
    while True:
        button_b.update()
        if button_b.long_press:
            break
        try:
            for entry in adapter.start_scan(
                    interval=0.04, window=0.04,
                    minimum_rssi=-100, timeout=0.2):
                payload = _extract_disney_payload(entry.advertisement_bytes)
                if payload is None:
                    continue
                key = bytes(payload)
                if key in seen:
                    seen[key][1] += 1
                else:
                    seen[key] = [time.monotonic() - start_time, 1, entry.rssi]
        finally:
            adapter.stop_scan()
        ...

def shake_magnitude():
    x, y, z = accel.acceleration
    return math.sqrt(x * x + y * y + z * z) - 9.81  # subtract gravity

if shake_magnitude() > _SHAKE_THRESHOLD and now - last_shake_time > _SHAKE_COOLDOWN:
    _cat_idx, command = pick_random_command()
    enter_confirm(command[0])

DISNEY_CID = 0x0183

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''MagicBand+ BLE protocol constants and helpers.

Shared between the CLUE transmitter and the QT Py S3 receiver. Based on the
reverse-engineering work at:
  https://emcot.world/Disney_MagicBand%2B_Bluetooth_Codes

All command payloads stored here are the manufacturer-data portion only (the
bytes after the 0x0183 Disney CID). The transmitter prepends the CID bytes
when building a BLE advertisement packet.
'''
# Target: shared between the Adafruit CLUE (BLE remote) and the Adafruit
# QT Py ESP32-S3 (BLE Beacon Ears) - copy this file to both boards.

# Disney's Bluetooth SIG company identifier.
DISNEY_CID = 0x0183

# 5-bit color palette. Values are RGB approximations calibrated for how the
# colors look on a NeoPixel Jewel at low brightness (~0.05). Green and blue
# channels look brighter per unit input than red on WS2812B LEDs, so cyan
# values have their red channel boosted to compensate, and blue hues get
# pushed toward their characteristic hue rather than a balanced RGB.
PALETTE_RGB = (
    (80, 255, 255),   # 0x00 cyan (red channel boosted so it's not pure teal)
    (180, 0, 255),    # 0x01 purple
    (0, 0, 255),      # 0x02 blue
    (0, 20, 120),     # 0x03 midnight blue (touch of green stops it looking black)
    (40, 120, 255),   # 0x04 blue 2
    (200, 80, 255),   # 0x05 bright purple
    (200, 180, 255),  # 0x06 lavender
    (120, 0, 255),    # 0x07 deep purple
    (255, 60, 180),   # 0x08 pink
    (255, 70, 170),   # 0x09 pink 2
    (255, 80, 160),   # 0x0A pink 3
    (255, 90, 150),   # 0x0B pink 4
    (255, 110, 150),  # 0x0C pink 5
    (255, 130, 160),  # 0x0D pink 6
    (255, 160, 170),  # 0x0E pink 7
    (255, 180, 0),    # 0x0F yellow orange
    (255, 220, 0),    # 0x10 off yellow
    (255, 140, 20),   # 0x11 yellow orange 2
    (180, 255, 0),    # 0x12 lime
    (255, 90, 0),     # 0x13 orange
    (255, 40, 0),     # 0x14 red orange
    (255, 0, 0),      # 0x15 red
    (60, 255, 255),   # 0x16 cyan 2 (red boost for distinctness from green)
    (40, 240, 255),   # 0x17 cyan 3
    (20, 200, 255),   # 0x18 cyan 4 (shifts more toward blue)
    (0, 255, 0),      # 0x19 green
    (80, 255, 40),    # 0x1A lime green
    (255, 200, 180),  # 0x1B white (warm white avoids blue cast at low levels)
    (255, 200, 180),  # 0x1C white 2
    (0, 0, 0),        # 0x1D off
    (255, 140, 60),   # 0x1E unique
    (255, 0, 255),    # 0x1F random / magenta
)

PALETTE_NAMES = (
    "Cyan", "Purple", "Blue", "Midnight Blue",
    "Blue 2", "Bright Purple", "Lavender", "Deep Purple",
    "Pink", "Pink 2", "Pink 3", "Pink 4",
    "Pink 5", "Pink 6", "Pink 7", "Yellow Orange",
    "Off Yellow", "Yellow Orange 2", "Lime", "Orange",
    "Red Orange", "Red", "Cyan 2", "Cyan 3",
    "Cyan 4", "Green", "Lime Green", "White",
    "White 2", "Off", "Unique", "Random",
)

# Mask palette: which of the 5 LEDs light up for a given 3-bit mask.
# Tuple order: (center, top_left, top_right, bottom_left, bottom_right)
MASK_LEDS = {
    0b000: (1, 1, 1, 1, 1),
    0b001: (0, 0, 1, 0, 0),
    0b010: (0, 0, 0, 0, 1),
    0b011: (0, 0, 0, 1, 0),
    0b100: (0, 1, 0, 0, 0),
    0b101: (1, 1, 1, 1, 1),
    0b110: (0, 0, 1, 0, 0),
    0b111: (1, 1, 1, 1, 1),
}


def decode_timing(byte):
    '''Turn the timing byte into a dict of animation parameters.'''
    scaler_b = bool(byte & 0x40)
    time_val = byte & 0x0F
    if scaler_b:
        seconds = 3.1 * time_val + 5.5
    else:
        seconds = 1.5 * time_val + 6.5
    return {
        "always_on": bool(byte & 0x80),
        "fade_code": (byte >> 4) & 0x03,
        "seconds": seconds,
    }


def build_single_color(palette_idx, mask=0, vibration=0, timing=0x09):
    '''Build an E9 05 single-color-from-palette command payload.'''
    color_byte = ((mask & 0x07) << 5) | (palette_idx & 0x1F)
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE1, 0x00, 0xE9, 0x05, 0x00, timing, 0x0E,
                  color_byte, vib_byte))


def build_dual_color(inner_idx, outer_idx, vibration=0, timing=0x22):
    '''Build an E9 06 dual-color command payload.

    Note: the emcot wiki spec text says the top 3 bits of each color byte
    should be 0b100, but the wiki's own example payloads use 0b010. Using
    0b100 causes the top-left LED to be masked off (same bits the E9 05
    mask palette uses for "top left only"). The correct working value
    per the captured examples is 0b010 / 0x40.
    '''
    inner_byte = 0x40 | (inner_idx & 0x1F)
    outer_byte = 0x40 | (outer_idx & 0x1F)
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE2, 0x00, 0xE9, 0x06, 0x00, timing, 0x0F,
                  inner_byte, outer_byte, vib_byte))


def build_six_bit_color(red, green, blue, vibration=0, timing=0x0E):
    '''Build an E9 08 raw 6-bit RGB command payload.'''
    red_byte = (red & 0x3F) << 1
    green_byte = (green & 0x3F) << 1
    blue_byte = (blue & 0x3F) << 1
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE1, 0x00, 0xE9, 0x08, 0x00, timing, 0xD2, 0x55,
                  red_byte, green_byte, blue_byte, vib_byte))


def build_five_color(center, top_left, bottom_left, bottom_right, top_right,
                    vibration=0, timing=0x0E):
    '''Build an E9 09 five-color-palette command payload.

    Each of the band's 5 LEDs gets its own palette slot. Order matches the
    emcot wiki byte order: center, bottom-left, bottom-right, top-right,
    top-left (reading outer ring counter-clockwise from top-left).
    '''
    def _color_byte(idx):
        return 0xA0 | (idx & 0x1F)
    vib_byte = 0xB0 | (vibration & 0x0F)
    return bytes((0xE1, 0x00, 0xE9, 0x09, 0x00, timing, 0x0F,
                  _color_byte(top_left),
                  _color_byte(bottom_left),
                  _color_byte(bottom_right),
                  _color_byte(top_right),
                  _color_byte(center),
                  vib_byte))


# Starlight Bubble Wand BLE protocol (reverse-engineered April 2026).
# 13-byte packets. First 6 bytes are a fixed signature identifying the
# wand and the "cast color" command. Bytes 6-11 contain a rolling code
# (probably anti-replay authentication) that changes on every broadcast.
# Byte 12 is the palette index - same table as the MagicBand+ palette.
#
# We only check the first 6 bytes to recognize a wand packet. The rolling
# middle bytes cannot be replayed (they would fail the wand's own checks
# if sent back), so we read them but don't try to decode or broadcast
# them ourselves.
WAND_SIGNATURE = bytes.fromhex("cf0b00c42022")
WAND_PAYLOAD_LENGTH = 13
WAND_COLOR_INDEX = 12


def is_wand_packet(payload):
    '''Return True if this payload is a Starlight Bubble Wand cast.'''
    return (len(payload) == WAND_PAYLOAD_LENGTH
            and bytes(payload[:len(WAND_SIGNATURE)]) == WAND_SIGNATURE)


def parse_wand(payload):
    '''Decode a wand cast packet into a structured command dict.'''
    if not is_wand_packet(payload):
        return None
    palette_idx = payload[WAND_COLOR_INDEX] & 0x1F
    return {
        "kind": "wand_cast",
        "palette_idx": palette_idx,
        "raw": bytes(payload),
    }


# Fab 50 statue beacons. The Disney Fab 50 golden statues placed around
# Magic Kingdom broadcast 0xC4 packets to assist guest location services.
# Two sub-formats: C4 10 (18 bytes) and C4 15 (22 bytes). Both contain
# an ASCII 2-digit statue ID at offset 15-16 (e.g. "53", "40", "24").
# Triggering a golden-swirl animation when these are detected gives the
# wearable a thematic "the statue sees you" reaction.
_STATUE_PREFIX = bytes.fromhex("c4")


def _is_statue_beacon(payload):
    '''Return True if this payload looks like a Fab 50 statue beacon.'''
    if not payload or payload[0] != 0xC4:
        return False
    # Two known formats: C4 10 (18 bytes) and C4 15 (23 bytes)
    return len(payload) in (18, 23)


def _parse_statue_beacon(payload):
    '''Decode a statue beacon to extract its 2-digit ASCII identifier.'''
    statue_id = "?"
    # Statue ID is at offset 15-16 in both 18- and 22-byte variants
    if len(payload) >= 17:
        try:
            statue_id = bytes(payload[15:17]).decode("ascii")
        except (UnicodeError, ValueError):
            statue_id = "?"
    return {
        "kind": "statue_beacon",
        "statue_id": statue_id,
        "raw": bytes(payload),
    }


# Park show command opcodes - direct E9/EA family with no E1 00 wrapper.
# Captured from Disney park show infrastructure (Epcot, April 2026). These
# coexist with guest-fired E1/E2 commands but use a different byte layout.
# Long-format variants (E9 10, E9 13, EA 14) share a `f4 48 82` signature
# in the middle of the payload; their byte structure isn't fully decoded
# yet. The E9 08 short form decodes cleanly as a 5-slot palette command.
_SHOW_OPCODE_LABELS = {
    (0xE9, 0x04): "E9 04",
    (0xE9, 0x08): "E9 08 5-slot",
    (0xE9, 0x10): "E9 10",
    (0xE9, 0x13): "E9 13",
    (0xEA, 0x14): "EA 14",
}


def _parse_show_command(payload):
    '''Parse a direct E9/EA show packet captured from park infrastructure.'''
    if len(payload) < 2:
        return None
    head = payload[0]
    sub = payload[1]
    label = _SHOW_OPCODE_LABELS.get((head, sub))
    if label is None:
        return None
    # E9 08 short form is a 5-slot palette command. Bytes 5-9 are masked
    # with 0x1F to extract palette indices, identical to the existing E9
    # 09 five-color decode. Confirmed by capture 9 (blue green) decoding
    # to Cyan/Blue 2/Green/Green/Blue 2 - matching the observed color.
    slots = None
    if (head == 0xE9 and sub == 0x08
            and len(payload) >= 10 and payload[4] == 0x0F):
        slots = [payload[5 + i] & 0x1F for i in range(5)]
    return {
        "kind": "show_command",
        "label": label,
        "head": head,
        "sub": sub,
        "slots": slots,
        "raw": bytes(payload),
    }


def _parse_by_head(payload):
    '''Decode a payload that's not a wand cast or statue beacon.'''
    head = payload[0]
    if head == 0xCC:
        return {"kind": "ping", "raw": payload}
    if head in (0xE9, 0xEA):
        show_cmd = _parse_show_command(payload)
        if show_cmd is not None:
            return show_cmd
    if head in (0xE1, 0xE2):
        return _parse_e1_e2(payload)
    return {"kind": "unknown", "raw": payload}


def parse(payload):
    '''Decode a manufacturer-data payload into a structured command dict.

    Used by the QT Py receiver to interpret commands from MagicBands, the
    CLUE remote, the Starlight Bubble Wand, and Disney park infrastructure
    (Fab 50 statues, parade beacons).
    '''
    if not payload:
        return None
    # Wand packets have a distinctive 6-byte header signature
    wand = parse_wand(payload)
    if wand is not None:
        return wand
    # Fab 50 statue beacons (Magic Kingdom hub area)
    if _is_statue_beacon(payload):
        return _parse_statue_beacon(payload)
    return _parse_by_head(payload)


def _parse_single_color(payload):
    color_byte = payload[7]
    return {
        "kind": "single_color",
        "mask": (color_byte >> 5) & 0x07,
        "palette_idx": color_byte & 0x1F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[8] & 0x0F,
    }


def _parse_dual_color(payload):
    return {
        "kind": "dual_color",
        "inner_idx": payload[7] & 0x1F,
        "outer_idx": payload[8] & 0x1F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[9] & 0x0F,
    }


def _parse_six_bit(payload):
    return {
        "kind": "six_bit_color",
        "red": (payload[8] >> 1) & 0x3F,
        "green": (payload[9] >> 1) & 0x3F,
        "blue": (payload[10] >> 1) & 0x3F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[11] & 0x0F,
    }


def _parse_five_color(payload):
    '''E9 09 layout: TL BL BR TR C VIB starting at index 7.'''
    return {
        "kind": "five_color",
        "top_left": payload[7] & 0x1F,
        "bottom_left": payload[8] & 0x1F,
        "bottom_right": payload[9] & 0x1F,
        "top_right": payload[10] & 0x1F,
        "center": payload[11] & 0x1F,
        "timing": decode_timing(payload[5]),
        "vibration": payload[12] & 0x0F,
    }


# Function-code dispatch for E1/E2-wrapped payloads. Each entry maps
# the 2-byte function code (payload[2]<<8 | payload[3]) to (min_length,
# parser_or_kind). When the parser slot is a callable, it's invoked with
# the payload; when it's a string, a generic {"kind": ..., "raw": ...}
# dict is returned. Defined at module bottom so all _parse_* helpers
# already exist when this dict is built at import time.
_FUNC_CODE_DISPATCH = {
    0xE905: (9, _parse_single_color),
    0xE906: (10, _parse_dual_color),
    0xE908: (12, _parse_six_bit),
    0xE909: (13, _parse_five_color),
    0xE90C: (5, "show_fx"),
    0xE911: (5, "cross_fade"),
    # Newer parade/show command not in our protocol docs. We can't
    # decode the colors but still want the ears to react visibly.
    0xCD07: (5, "parade_command"),
}


def _parse_e1_e2(payload):
    '''Decode an E1/E2-wrapped payload by its function code.'''
    if len(payload) < 5:
        return {"kind": "unknown", "raw": payload}
    func = (payload[2] << 8) | payload[3]
    entry = _FUNC_CODE_DISPATCH.get(func)
    if entry is None:
        return {"kind": "animation", "func": func, "raw": payload}
    min_len, handler = entry
    if len(payload) < min_len:
        return {"kind": "animation", "func": func, "raw": payload}
    if callable(handler):
        return handler(payload)
    return {"kind": handler, "raw": payload}

PALETTE_RGB = (
    (80, 255, 255),   # 0x00 cyan (red boost so it's not pure teal)
    (180, 0, 255),    # 0x01 purple
    (0, 0, 255),      # 0x02 blue
    (0, 20, 120),     # 0x03 midnight blue
    ...
    (0, 255, 0),      # 0x19 green
    (80, 255, 40),    # 0x1A lime green
    (255, 200, 180),  # 0x1B white (warm white)
    ...
    (255, 0, 255),    # 0x1F random / magenta
)

def parse(payload):
    if not payload:
        return None
    wand = parse_wand(payload)
    if wand is not None:
        return wand
    if _is_statue_beacon(payload):
        return _parse_statue_beacon(payload)
    return _parse_by_head(payload)

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''Pixel zone abstraction for the BLE Beacon Ears project.

A "zone" represents one ear. Each ear is driven by its own 7-pixel
Jewel on an independent data pin so the renderer can output stereo
effects (left-leads-right rotations, out-of-phase breathing).

The API is intentionally minimal:
    zone.fill(rgb)              - solid color across all pixels
    zone.set_led(idx, rgb)      - write a specific pixel
    zone.count                  - number of pixels in the zone
    zone.show()                 - flush to hardware (no-op if auto_write)

The renderer writes to both zones each frame and calls show() once at frame
end. Double-buffering is not needed at 15fps - a torn frame would be
invisible to the eye.
'''
# Target: Adafruit QT Py ESP32-S3 - the BLE Beacon Ears
import neopixel


class StereoJewels:
    '''Production mode: two 7-pixel Jewels on independent data pins.

    Supports an idle-skip optimization: once both jewels have been shown
    as all-black, subsequent show() calls are no-ops until pixel data
    actually changes. This avoids unnecessary data-stream activity and
    lets the WS2812 chips stay in their lowest-current latched state.
    '''

    def __init__(self, left_pin, right_pin, brightness=0.1):
        self._left = neopixel.NeoPixel(
            left_pin, 7, brightness=brightness, auto_write=False)
        self._right = neopixel.NeoPixel(
            right_pin, 7, brightness=brightness, auto_write=False)
        self._left.fill((0, 0, 0))
        self._right.fill((0, 0, 0))
        self._left.show()
        self._right.show()
        self._last_shown_black = True

    def make_zones(self):
        '''Return (left_zone, right_zone) wrapping each Jewel separately.'''
        return _JewelZone(self._left), _JewelZone(self._right)

    def set_brightness(self, brightness):
        '''Change the brightness of both jewels at runtime.'''
        self._left.brightness = brightness
        self._right.brightness = brightness
        self._last_shown_black = False  # force next show() to push new values

    def _all_black(self):
        '''Return True if every pixel on both jewels is currently (0,0,0).'''
        for i in range(7):
            if self._left[i] != (0, 0, 0):
                return False
            if self._right[i] != (0, 0, 0):
                return False
        return True

    def show(self):
        '''Flush both Jewel buffers to hardware, with idle-skip optimization.

        If we've already shown all-black once and nothing has changed to
        non-black since, skip the data stream to save power. The WS2812
        chips latch their last color state and stay in quiescent mode
        until new data arrives.
        '''
        if self._all_black():
            if self._last_shown_black:
                return
            self._left.show()
            self._right.show()
            self._last_shown_black = True
        else:
            self._left.show()
            self._right.show()
            self._last_shown_black = False


class _JewelZone:
    '''Zone backed by a dedicated 7-pixel Jewel (StereoJewels mode).'''

    count = 7

    def __init__(self, pixel_obj):
        self._pixel = pixel_obj

    def fill(self, rgb):
        '''Set every pixel on this Jewel to the given color.'''
        self._pixel.fill(rgb)

    def set_led(self, idx, rgb):
        '''Write a specific pixel index (0-6) on this Jewel.'''
        if 0 <= idx < 7:
            self._pixel[idx] = rgb

zone.fill(rgb)              # solid color across all pixels
zone.set_led(idx, rgb)      # write a specific pixel
zone.count                  # number of pixels in the zone
zone.show()                 # flush to hardware

# SPDX-FileCopyrightText: 2026 Pedro Ruiz for Adafruit Industries
#
# SPDX-License-Identifier: MIT
'''Animation renderer for MagicBand+ commands.

Given a parsed command dict from magicband_protocol, produces an
AnimationState that the game loop can render over time. The state is a
small dict holding:
    started_at (seconds)         - time.monotonic() when command received
    duration_s (float or None)   - how long until animation stops; None = forever
    render(zones, t)             - callback that paints a frame at time t

Design rules:
  - Renderer NEVER blocks. All timing is derived from t (time since start).
  - All palette colors are looked up via magicband_protocol.PALETTE_RGB.
  - Stereo effects are applied at render time via per-zone phase offset.
  - When no active animation exists, zones are filled black.
'''
# Target: Adafruit QT Py ESP32-S3 - the BLE Beacon Ears
import math

import magicband_protocol

# Breathing envelope - applied to static colors to add life.
# Amplitude 0.45 means brightness oscillates between 55% and 100% of target.
# This is more pronounced than a subtle 25% amplitude would be - on 7-pixel
# jewels with full color, you need more contrast to read as "breathing."
_BREATH_PERIOD_S = 2.5
_BREATH_AMPLITUDE = 0.45

# Rotation period for animations without explicit timing cues.
_ROTATE_PERIOD_S = 2.0

# Default duration when a command has no parseable timing byte.
_DEFAULT_DURATION_S = 10.0

# Cross-fade period for dual-color alternation on pixel prototype.
_DUAL_ALTERNATE_PERIOD_S = 1.2


def _scale_rgb(rgb, factor):
    '''Multiply each channel by factor (0.0-1.0) and clamp.'''
    return (
        min(255, max(0, int(rgb[0] * factor))),
        min(255, max(0, int(rgb[1] * factor))),
        min(255, max(0, int(rgb[2] * factor))),
    )


def _breath_factor(t, phase=0.0):
    '''Return 0..1 brightness multiplier that breathes gently over time.'''
    # Sinusoid, output range (1 - amp) to 1.0.
    wave = 0.5 + 0.5 * math.sin(
        2 * math.pi * (t / _BREATH_PERIOD_S + phase))
    return (1.0 - _BREATH_AMPLITUDE) + _BREATH_AMPLITUDE * wave


def for_command(command):
    '''Build an AnimationState from a parsed command dict.'''
    kind = command.get("kind", "unknown")
    handler = _COMMAND_HANDLERS.get(kind)
    if handler is None:
        return None
    if kind == "ping":
        return handler()
    return handler(command)


def _state_parade_command(_command):
    '''CD 07 / parade beacon - colors not decoded.

    Newer Disney park show commands (Starlight Parade etc.) use formats
    we haven't reverse-engineered. Rather than ignoring them and being
    silent during the show, render a generic rainbow rotation so the
    ears at least respond visibly. The wearer sees that the show IS
    triggering them, just not in the exact same way as a real band.
    '''
    rainbow_colors = (
        (255, 0, 0),       # red
        (255, 100, 0),     # orange
        (255, 220, 0),     # yellow
        (0, 255, 0),       # green
        (0, 120, 255),     # blue
        (180, 0, 255),     # purple
    )

    def render(zones, t):
        # Smooth rotation over 2 seconds per cycle
        phase = t / 2.0
        n_colors = len(rainbow_colors)
        for zone_idx, zone in enumerate(zones):
            zone_offset = 0.5 if zone_idx == 1 else 0.0
            outer_count = max(1, zone.count - 1)
            # Center pixel cycles slowly
            center_slot = int(phase) % n_colors
            zone.set_led(0, _scale_rgb(rainbow_colors[center_slot], 0.4))
            for led_idx in range(1, zone.count):
                angle_frac = (led_idx - 1) / outer_count
                color_phase = phase + zone_offset + angle_frac
                slot = int(color_phase * n_colors) % n_colors
                zone.set_led(led_idx, rainbow_colors[slot])

    return {"duration_s": 5.0, "render": render, "label": "PARADE"}


def _state_statue_beacon(command):
    '''Fab 50 statue detected - golden swirl with sparkles and pulse.

    Disney's Fab 50 golden statues at Magic Kingdom broadcast continuous
    location beacons. We trigger this animation to acknowledge "the
    statue sees you" when one is detected nearby. The original 2-second
    version felt too brief - now 4.0s with two pulse "beats" so the
    surprise lasts long enough to register.

    Visual: warm gold pixels swirl around the outer ring, with random
    bright white sparkles popping in. Sparkles get easier to trigger
    on pulse peaks. A breathing brightness envelope creates two beats
    over the 4-second span; each beat peaks mid-rotation, so the swirl
    waxes bright at ~1s and ~3s with a softer dip between them.
    '''
    statue_id = command.get("statue_id", "?")
    gold_bright = (255, 180, 30)
    gold_dim = (120, 80, 10)
    sparkle_white = (255, 255, 200)

    def _statue_pixel_for(led_idx, ring_idx, zone_idx, t, phase, envelope, pulse):
        '''Compute the RGB for one outer-ring LED in the statue swirl.'''
        # Sparkle: pseudo-random per LED + time. Threshold gets
        # slightly easier on pulse peaks so sparkles cluster
        # rhythmically with the beat instead of feeling random.
        sparkle_phase = t * 12.0 + led_idx * 1.7 + zone_idx * 0.5
        if math.sin(sparkle_phase) > 0.88 - 0.06 * pulse:
            return _scale_rgb(sparkle_white, envelope)
        zone_offset = phase + (0.3 if zone_idx == 1 else 0.0)
        outer_count = 6
        head_pos = (zone_offset * outer_count) % outer_count
        distance = (head_pos - ring_idx) % outer_count
        if distance < 1.0:
            return _scale_rgb(gold_bright, envelope)
        if distance < 3.0:
            fade = 1.0 - (distance / 3.0)
            return _scale_rgb(gold_dim, envelope * fade)
        return (0, 0, 0)

    def render(zones, t):
        # Outer envelope: 0-0.3s fade in, 3.7-4.0s fade out, flat between.
        if t < 0.3:
            fade_envelope = t / 0.3
        elif t > 3.7:
            fade_envelope = max(0.0, (4.0 - t) / 0.3)
        else:
            fade_envelope = 1.0
        # Two-beat pulse: dim at t=0, peak at t=1, dim at t=2, peak at
        # t=3, dim at t=4. Cosine-shifted sine keeps range tight (0.5..1.0)
        # so the swirl never disappears entirely between peaks.
        pulse = 0.75 + 0.25 * math.sin(
            2 * math.pi * t / 2.0 - math.pi / 2)
        envelope = fade_envelope * pulse
        # Continuous rotation - no reset between beats. ~3 full
        # revolutions over the 4s span at 1.5 rev/s base rate.
        phase = t * 1.5
        for zone_idx, zone in enumerate(zones):
            # Center pixel: steady warm gold modulated by envelope
            zone.set_led(0, (int(gold_bright[0] * envelope * 0.6),
                             int(gold_bright[1] * envelope * 0.6),
                             int(gold_bright[2] * envelope * 0.6)))
            for led_idx in range(1, zone.count):
                zone.set_led(led_idx, _statue_pixel_for(
                    led_idx, led_idx - 1, zone_idx, t, phase,
                    envelope, pulse))

    return {
        "duration_s": 4.0,
        "render": render,
        "label": f"STATUE #{statue_id}",
    }


# Find Me beacon - 3-phase high-visibility animation for locating a
# stroller, wheelchair, or EV scooter in a busy parking lot. Triggered
# by the CLUE remote's "Find Me" command. The main loop also forces
# the pixel brightness to maximum during this animation regardless of
# the user's preset, then restores their preset after.
_FIND_STROBE_S = 3.0       # Phase 1: attention-grabbing strobe
_FIND_CHASE_S = 15.0       # Phase 2: rainbow chase (motion + color)
_FIND_BREATHE_S = 12.0     # Phase 3: rainbow breathing (steady glow)
FIND_MODE_DURATION_S = _FIND_STROBE_S + _FIND_CHASE_S + _FIND_BREATHE_S


def _state_find_me(_command):
    '''3-phase high-visibility "find me" animation.

    Phase 1: Strobe - rapid full-white + saturated color flashes to
        catch eyes from across a parking lot.
    Phase 2: Rainbow chase - bright pixels rotating around the ring with
        rainbow color trail. Easy to spot at distance, indicates motion
        / liveness.
    Phase 3: Rainbow breathing - steady saturated rainbow at slower
        breath rate. Less alarming once located, easy to home in on.
    '''
    # Vivid colors used throughout (full saturation for visibility)
    rainbow = (
        (255, 0, 0),      # red
        (255, 80, 0),     # orange
        (255, 200, 0),    # yellow
        (0, 255, 0),      # green
        (0, 80, 255),     # blue
        (180, 0, 255),    # purple
    )
    white = (255, 255, 255)

    def _phase_strobe(zones, t):
        '''Phase 1: strobe at 5 Hz alternating white and rainbow color.'''
        strobe_idx = int(t * 10)  # 10 strobes/sec
        if strobe_idx % 2 == 0:
            color = white
        else:
            color = rainbow[(strobe_idx // 2) % len(rainbow)]
        for zone in zones:
            zone.fill(color)

    def _phase_chase(zones, phase_t):
        '''Phase 2: rainbow chase rotating around the ring.'''
        rotation = phase_t * 1.5  # ~1.5 revolutions per second
        n = len(rainbow)
        for zone_idx, zone in enumerate(zones):
            zone_offset = rotation + (0.3 if zone_idx == 1 else 0.0)
            zone.set_led(0, rainbow[int(rotation * 0.5) % n])
            outer_count = max(1, zone.count - 1)
            for led_idx in range(1, zone.count):
                angle = (led_idx - 1) / outer_count
                zone.set_led(led_idx,
                             rainbow[int((zone_offset + angle) * n) % n])

    def _phase_breathe(zones, phase_t):
        '''Phase 3: rainbow breathing - all pixels rainbow with envelope.'''
        breath = 0.5 + 0.5 * math.sin(2 * math.pi * phase_t / 2.0)
        n = len(rainbow)
        for zone_idx, zone in enumerate(zones):
            zone_offset = 0.5 if zone_idx == 1 else 0.0
            zone.set_led(0, _scale_rgb(
                rainbow[int(phase_t / 2.0) % n], breath))
            outer_count = max(1, zone.count - 1)
            for led_idx in range(1, zone.count):
                angle = (led_idx - 1) / outer_count
                zone.set_led(led_idx, _scale_rgb(
                    rainbow[int((angle + zone_offset) * n) % n], breath))

    def render(zones, t):
        if t < _FIND_STROBE_S:
            _phase_strobe(zones, t)
        elif t < _FIND_STROBE_S + _FIND_CHASE_S:
            _phase_chase(zones, t - _FIND_STROBE_S)
        else:
            _phase_breathe(zones, t - _FIND_STROBE_S - _FIND_CHASE_S)

    return {
        "duration_s": FIND_MODE_DURATION_S,
        "render": render,
        "label": "FIND ME",
    }


def _lighten(rgb, amount=0.4):
    '''Return rgb shifted toward white by `amount` (0.0-1.0).'''
    return (
        min(255, int(rgb[0] + (255 - rgb[0]) * amount)),
        min(255, int(rgb[1] + (255 - rgb[1]) * amount)),
        min(255, int(rgb[2] + (255 - rgb[2]) * amount)),
    )


def _state_wand_cast(command):
    '''Starlight Wand cast - a multi-phase comet animation.

    Narrative:
      1. Comet swirls on the LEFT ear twice (outer ring), tail fading behind.
      2. Comet "crosses over" briefly (both ears show a quick trail).
      3. Comet swirls on the RIGHT ear twice.
      4. Both ears sparkle with a lighter shade of the cast color.
      5. Both ears settle into a slow breathing glow of the cast color,
         holding for 30 seconds or until the next command arrives.

    Each outer-ring pixel on a 7-pixel Jewel is indexed 1..6 with pixel 0
    being the center. The comet moves around the 6 outer pixels; the
    center pixel glows at a modest fraction to anchor the swirl.
    '''
    palette_idx = command["palette_idx"]
    rgb = magicband_protocol.PALETTE_RGB[palette_idx]
    sparkle_rgb = _lighten(rgb, 0.55)
    name = magicband_protocol.PALETTE_NAMES[palette_idx]

    # Phase timings (seconds from t=0): swirl_left_end, crossover_end,
    # swirl_right_end, sparkle_end, total_duration.
    timings = (0.9, 1.1, 2.0, 2.8, 30.0)
    # Comet shape: outer_count, tail_len, tail_falloff (per-step dimming).
    comet_shape = (6, 4, 0.55)

    def _comet_on_zone(zone, head_position, color_bright):
        '''Draw a comet with tail on the outer ring of one zone.

        head_position is a float 0..outer_count-1 indicating where the
        comet "head" sits on the ring. Tail trails behind it at decreasing
        brightness. Center pixel (idx 0) anchors at a modest glow.
        '''
        outer_count, tail_len, tail_falloff = comet_shape
        # Fade the center so it's subtle but present
        zone.set_led(0, _scale_rgb(color_bright, 0.3))
        # Tail effect - for each outer ring pixel, compute its distance
        # back from the head and set brightness accordingly.
        head_int = int(head_position) % outer_count
        for ring_idx in range(outer_count):
            led_idx = ring_idx + 1  # skip center
            # Distance back from head (always positive, wrapping around)
            distance = (head_int - ring_idx) % outer_count
            if distance > tail_len:
                zone.set_led(led_idx, (0, 0, 0))
            elif distance == 0:
                # Bright head
                zone.set_led(led_idx, color_bright)
            else:
                factor = tail_falloff ** distance
                zone.set_led(led_idx, _scale_rgb(color_bright, factor))

    def _dark_zone(zone):
        for i in range(zone.count):
            zone.set_led(i, (0, 0, 0))

    def render(zones, t):
        left, right = zones[0], zones[1]
        swirl_left_end, crossover_end, swirl_right_end, sparkle_end, _ = timings
        outer_count = comet_shape[0]

        if t < swirl_left_end:
            _wand_phase_left(left, right, t, swirl_left_end,
                             outer_count, rgb, _comet_on_zone, _dark_zone)
        elif t < crossover_end:
            _wand_phase_crossover(left, right, t, swirl_left_end,
                                  crossover_end, outer_count, rgb,
                                  _comet_on_zone)
        elif t < swirl_right_end:
            _wand_phase_right(left, right, t, crossover_end,
                              swirl_right_end, outer_count, rgb,
                              _comet_on_zone, _dark_zone)
        elif t < sparkle_end:
            _wand_phase_sparkle(zones, t, rgb, sparkle_rgb)
        else:
            _wand_phase_breathe(left, right, t - sparkle_end, rgb)

    return {
        "duration_s": timings[4],
        "render": render,
        "label": f"WAND {name}",
    }


def _wand_phase_left(left, right, t, swirl_left_end, outer_count,
                     rgb, comet_fn, dark_fn):
    '''Phase 1: left ear comet, 2 full swirls. Right ear dark.'''
    progress = t / swirl_left_end
    comet_fn(left, progress * outer_count * 2, rgb)
    dark_fn(right)


def _wand_phase_crossover(left, right, t, swirl_left_end, crossover_end,
                          outer_count, rgb, comet_fn):
    '''Phase 2: crossover - left fades, right starts.'''
    fade_progress = (t - swirl_left_end) / (crossover_end - swirl_left_end)
    comet_fn(left, outer_count * 2 - 1,
             _scale_rgb(rgb, 1.0 - fade_progress))
    comet_fn(right, 0, _scale_rgb(rgb, fade_progress))


def _wand_phase_right(left, right, t, crossover_end, swirl_right_end,
                      outer_count, rgb, comet_fn, dark_fn):
    '''Phase 3: right ear comet, 2 full swirls. Left ear dark.'''
    progress = (t - crossover_end) / (swirl_right_end - crossover_end)
    dark_fn(left)
    comet_fn(right, progress * outer_count * 2, rgb)


def _wand_phase_sparkle(zones, t, rgb, sparkle_rgb):
    '''Phase 4: sparkle burst - both ears scatter light shimmers.'''
    for zone_idx, zone in enumerate(zones):
        for led_idx in range(zone.count):
            phase = t * 22.0 + led_idx * 1.3 + zone_idx * 0.7
            twinkle = abs(math.sin(phase * 2 * math.pi))
            if twinkle > 0.75:
                zone.set_led(led_idx, sparkle_rgb)
            elif twinkle > 0.4:
                zone.set_led(led_idx, _scale_rgb(rgb, twinkle))
            else:
                zone.set_led(led_idx, _scale_rgb(rgb, 0.2))


def _wand_phase_breathe(left, right, t_breath, rgb):
    '''Phase 5: settled breathing - slow, gentle pulse on both ears.'''
    # 4-second period, 30% amplitude (between 70% and 100%). Right ear
    # is offset by half a cycle so the two ears breathe out of phase.
    left_f = 0.85 + 0.15 * math.sin(2 * math.pi * t_breath / 4.0)
    right_f = 0.85 + 0.15 * math.sin(
        2 * math.pi * (t_breath / 4.0 + 0.5))
    left.fill(_scale_rgb(rgb, left_f))
    right.fill(_scale_rgb(rgb, right_f))


def _state_ping():
    # Wake-ping packets (CC03) are fired by the CLUE remote right before
    # commands flagged needs_ping=True. They're a meta-signal meant for
    # the band receiver, not something the ears should visualize. Return
    # None so the game loop ignores it entirely.
    return None


def _state_single_color(command):
    palette = command["palette_idx"]
    rgb = magicband_protocol.PALETTE_RGB[palette]
    name = magicband_protocol.PALETTE_NAMES[palette]
    duration = None if command["timing"]["always_on"] else command["timing"]["seconds"]

    def render(zones, t):
        # Stereo breathing: left and right out of phase by half a cycle.
        left_rgb = _scale_rgb(rgb, _breath_factor(t, phase=0.0))
        right_rgb = _scale_rgb(rgb, _breath_factor(t, phase=0.5))
        zones[0].fill(left_rgb)
        zones[1].fill(right_rgb)

    return {
        "duration_s": duration,
        "render": render,
        "label": f"SINGLE {name}",
    }


def _state_dual_color(command):
    inner = magicband_protocol.PALETTE_RGB[command["inner_idx"]]
    outer = magicband_protocol.PALETTE_RGB[command["outer_idx"]]
    inner_name = magicband_protocol.PALETTE_NAMES[command["inner_idx"]]
    outer_name = magicband_protocol.PALETTE_NAMES[command["outer_idx"]]
    duration = None if command["timing"]["always_on"] else command["timing"]["seconds"]

    def render(zones, t):
        # Stereo assignment: left = inner, right = outer. Each still breathes
        # to stay lively. Out-of-phase breathing keeps the two ears feeling
        # alive rather than identical.
        zones[0].fill(_scale_rgb(inner, _breath_factor(t, phase=0.0)))
        zones[1].fill(_scale_rgb(outer, _breath_factor(t, phase=0.5)))

    return {
        "duration_s": duration,
        "render": render,
        "label": f"DUAL {inner_name}/{outer_name}",
    }


def _state_five_color(command):
    # Each of the 5 band LEDs has its own palette slot. We pick a
    # representative color per zone: left zone uses top-left + bottom-left,
    # right zone uses top-right + bottom-right, each zone's center lights up
    # the average. For single-pixel prototype we flatten further.
    tl = magicband_protocol.PALETTE_RGB[command["top_left"]]
    bl = magicband_protocol.PALETTE_RGB[command["bottom_left"]]
    tr = magicband_protocol.PALETTE_RGB[command["top_right"]]
    br = magicband_protocol.PALETTE_RGB[command["bottom_right"]]
    center = magicband_protocol.PALETTE_RGB[command["center"]]
    duration = (None if command["timing"]["always_on"]
                else command["timing"]["seconds"])

    def _avg(a, b, c):
        return ((a[0] + b[0] + c[0]) // 3,
                (a[1] + b[1] + c[1]) // 3,
                (a[2] + b[2] + c[2]) // 3)

    left_rgb = _avg(tl, bl, center)
    right_rgb = _avg(tr, br, center)

    def render(zones, t):
        zones[0].fill(_scale_rgb(left_rgb, _breath_factor(t, phase=0.0)))
        zones[1].fill(_scale_rgb(right_rgb, _breath_factor(t, phase=0.5)))

    return {"duration_s": duration, "render": render, "label": "FIVE"}


def _state_six_bit(command):
    # E9 08 gives raw 6-bit RGB. Expand to 8-bit and use it directly.
    rgb = (command["red"] << 2, command["green"] << 2, command["blue"] << 2)
    duration = (None if command["timing"]["always_on"]
                else command["timing"]["seconds"])

    def render(zones, t):
        zones[0].fill(_scale_rgb(rgb, _breath_factor(t, phase=0.0)))
        zones[1].fill(_scale_rgb(rgb, _breath_factor(t, phase=0.5)))

    return {"duration_s": duration, "render": render, "label": "RGB6"}


# Firmware-baked E9 0C animations. These have known payload signatures
# whose bytes are NOT raw 5-slot palette indices but rather animation
# program selectors. We map them to approximate visual color sequences
# matching how real MagicBand+ hardware actually plays them.
#
# Key: first 12 bytes of payload (signature prefix, excludes timing/vib/vib)
# Value: (label, ordered color RGB list)
_BAKED_ANIMATIONS = {
    # Taste the Rainbow - full rainbow rotation
    bytes.fromhex("e100e90c000f0f5d465bf005"): (
        "Rainbow",
        [
            (255, 0, 0),        # red
            (255, 90, 0),       # orange
            (255, 220, 0),      # yellow
            (0, 255, 0),        # green
            (0, 120, 255),      # blue
            (180, 0, 255),      # purple
        ],
    ),
    # Blink White - white strobe
    bytes.fromhex("e100e90c000f0f5d465bf005"): (
        "Blink White",
        [(255, 220, 200), (0, 0, 0)],
    ),
    # Orange Blink - orange pulse
    bytes.fromhex("e100e90c00ef0f4f4f5bf0fb"): (
        "Orange Blink",
        [(255, 90, 0), (50, 20, 0)],
    ),
}


def _lookup_baked_animation(raw):
    '''Return (label, slots) if raw matches a known firmware animation.'''
    # Taste the Rainbow and Blink White share the same 12-byte prefix but
    # differ in tail bytes. Disambiguate by comparing tail too.
    prefix = bytes(raw[:12])
    tail = bytes(raw[12:]) if len(raw) > 12 else b""

    # Taste the Rainbow full: e100e90c000f0f5d465bf005 32 37 48 b0
    # Blink White full:       e100e90c000f0f5d465bf005 32 37 48 95
    # Distinguished by last byte: b0=no vibration (TTR), 95=other (Blink White)
    if prefix == bytes.fromhex("e100e90c000f0f5d465bf005"):
        if len(tail) >= 4 and tail[-1] == 0x95:
            return ("Blink White",
                    [(255, 220, 200), (0, 0, 0)])
        # Default this prefix to Taste the Rainbow
        return ("Rainbow",
                [(255, 0, 0), (255, 90, 0), (255, 220, 0),
                 (0, 255, 0), (0, 120, 255), (180, 0, 255)])

    # Orange Blink
    if prefix == bytes.fromhex("e100e90c00ef0f4f4f5bf0fb"):
        return ("Orange Blink",
                [(255, 90, 0), (50, 20, 0)])

    return None


def _decode_5slot_palette(raw):
    '''Decode bytes 7..11 of a 5-slot E9 0C payload into colors and label.

    Returns (slots, label) where slots is a list of RGB tuples and label
    is a short summary of the distinct color names involved.
    '''
    slot_bytes = raw[7:12] if len(raw) >= 12 else raw[7:]
    slots = []
    slot_names = []
    for byte in slot_bytes:
        idx = byte & 0x1F
        slots.append(magicband_protocol.PALETTE_RGB[idx])
        slot_names.append(magicband_protocol.PALETTE_NAMES[idx])
    if not slots:
        slots = [(255, 255, 255)]
        slot_names = ["White"]
    distinct = []
    for name in slot_names:
        short = name.split()[0][:4]
        if not distinct or distinct[-1] != short:
            distinct.append(short)
    return slots, f"SHOW {'>'.join(distinct)}"


def _state_show_fx(command):
    '''E9 0C captured park animations.

    Some E9 0C payloads are firmware-baked animation programs (Taste the
    Rainbow, Blink White, Orange Blink) where the bytes are program IDs,
    not 5-slot palettes. We recognize those by signature and use hardcoded
    color sequences matching their real visual appearance.

    Other E9 0C payloads (5 Palette Cycle, DCL Rainbow, future clones) are
    true 5-slot palette cycles - for those we extract colors from bytes
    7-11 as palette indices.
    '''
    raw = command["raw"]
    baked = _lookup_baked_animation(raw)
    if baked is not None:
        label_suffix, slots = baked
        label = f"SHOW {label_suffix}"
    else:
        slots, label = _decode_5slot_palette(raw)

    duration = _DEFAULT_DURATION_S
    if len(raw) >= 6:
        timing = magicband_protocol.decode_timing(raw[5])
        duration = None if timing["always_on"] else timing["seconds"]

    def render(zones, t):
        n_slots = len(slots)
        phase = t / _ROTATE_PERIOD_S
        for zone_idx, zone in enumerate(zones):
            zone_offset = 0.5 if zone_idx == 1 else 0.0
            center_slot = int(phase) % n_slots
            zone.set_led(0, slots[center_slot])
            outer_count = max(1, zone.count - 1)
            for led_idx in range(1, zone.count):
                angle_frac = (led_idx - 1) / outer_count
                color_phase = phase + zone_offset + angle_frac
                slot = int(color_phase * n_slots) % n_slots
                zone.set_led(led_idx, slots[slot])

    return {"duration_s": duration, "render": render, "label": label}


def _state_cross_fade(command):
    # E9 11 cross fade between two palette colors. The two endpoint colors
    # are encoded in bytes 7 (from) and 8 (to) of the payload. Bytes 9+
    # appear to be fade timing and repeat parameters, not additional color
    # slots.
    raw = command["raw"]
    slot_a_idx = (raw[7] if len(raw) > 7 else 0) & 0x1F
    slot_b_idx = (raw[8] if len(raw) > 8 else 0) & 0x1F
    slot_a = magicband_protocol.PALETTE_RGB[slot_a_idx]
    slot_b = magicband_protocol.PALETTE_RGB[slot_b_idx]
    name_a = magicband_protocol.PALETTE_NAMES[slot_a_idx]
    name_b = magicband_protocol.PALETTE_NAMES[slot_b_idx]
    duration = _DEFAULT_DURATION_S * 2
    if len(raw) >= 6:
        timing = magicband_protocol.decode_timing(raw[5])
        duration = None if timing["always_on"] else timing["seconds"]

    def _mix(a, b, f):
        return (
            int(a[0] * (1 - f) + b[0] * f),
            int(a[1] * (1 - f) + b[1] * f),
            int(a[2] * (1 - f) + b[2] * f),
        )

    def render(zones, t):
        # Slow sinusoidal cross fade between a and b. Left leads right.
        f_left = 0.5 + 0.5 * math.sin(2 * math.pi * t / 4.0)
        f_right = 0.5 + 0.5 * math.sin(2 * math.pi * (t - 1.0) / 4.0)
        zones[0].fill(_mix(slot_a, slot_b, f_left))
        zones[1].fill(_mix(slot_a, slot_b, f_right))

    return {
        "duration_s": duration,
        "render": render,
        "label": f"FADE {name_a}<>{name_b}",
    }


def _show_command_slots_path(slots):
    '''5-slot palette path for show_command. Returns a state dict.'''
    slot_colors = [magicband_protocol.PALETTE_RGB[i] for i in slots]
    slot_names = [magicband_protocol.PALETTE_NAMES[i] for i in slots]
    distinct = []
    for name in slot_names:
        short = name.split()[0][:4]
        if not distinct or distinct[-1] != short:
            distinct.append(short)
    full_label = f"SHOW5 {'>'.join(distinct)}"

    def render_slots(zones, t):
        n_slots = len(slot_colors)
        phase = t / _ROTATE_PERIOD_S
        for zone_idx, zone in enumerate(zones):
            zone_offset = 0.5 if zone_idx == 1 else 0.0
            zone.set_led(0, slot_colors[int(phase) % n_slots])
            outer_count = max(1, zone.count - 1)
            for led_idx in range(1, zone.count):
                angle_frac = (led_idx - 1) / outer_count
                color_phase = phase + zone_offset + angle_frac
                zone.set_led(led_idx,
                             slot_colors[int(color_phase * n_slots) % n_slots])

    return {"duration_s": _DEFAULT_DURATION_S, "render": render_slots,
            "label": full_label}


def _show_command_generic_path(raw, label):
    '''Generic park-show pulse for un-decoded long-format packets.

    Uses a position-weighted polynomial hash to derive a deterministic
    primary palette index per capture - simple XOR collapsed multiple
    captures into the same bucket, which defeats the "tell captures
    apart on camera" goal.
    '''
    seed = 0
    for byte in raw:
        seed = (seed * 31 + byte) & 0xFFFF
    palette_size = len(magicband_protocol.PALETTE_RGB)
    primary_idx = seed % palette_size
    # Skip the "Off" palette entry so the primary is never black.
    if magicband_protocol.PALETTE_RGB[primary_idx] == (0, 0, 0):
        primary_idx = (primary_idx + 1) % palette_size
    primary_name = magicband_protocol.PALETTE_NAMES[primary_idx]
    # Anchor the primary plus three accents spaced around the palette.
    accents = (
        magicband_protocol.PALETTE_RGB[primary_idx],
        magicband_protocol.PALETTE_RGB[(primary_idx + 6) % palette_size],
        magicband_protocol.PALETTE_RGB[(primary_idx + 12) % palette_size],
        magicband_protocol.PALETTE_RGB[(primary_idx + 18) % palette_size],
    )

    def render_generic(zones, t):
        # 1.2s rotation - faster than the 2.0s used for guest commands,
        # gives the show pulse a more energetic feel.
        phase = t / 1.2
        n_slots = 4
        for zone_idx, zone in enumerate(zones):
            zone_offset = 0.5 if zone_idx == 1 else 0.0
            zone.set_led(0, accents[int(phase) % n_slots])
            outer_count = max(1, zone.count - 1)
            for led_idx in range(1, zone.count):
                angle_frac = (led_idx - 1) / outer_count
                color_phase = phase + zone_offset + angle_frac
                zone.set_led(led_idx,
                             accents[int(color_phase * n_slots) % n_slots])

    return {"duration_s": _DEFAULT_DURATION_S, "render": render_generic,
            "label": f"{label} hue={primary_name}"}


def _state_show_command(command):
    '''Park-show packet renderer (Epcot light show, etc.).

    Two paths depending on whether the payload decodes:
      - If `slots` is set (E9 08 short form), render as a 5-slot palette
        rotation matching firmware show_fx output.
      - Otherwise the long-format payloads (E9 10, E9 13, EA 14) aren't
        fully decoded yet, so render a generic park-show pulse with a
        primary hue derived from the payload bytes. Different captured
        payloads produce visibly different primary colors, so multiple
        captures can be told apart on camera even though we can't decode
        their internal structure.
    '''
    slots = command.get("slots")
    if slots is not None:
        return _show_command_slots_path(slots)
    return _show_command_generic_path(
        command["raw"], command.get("label", "SHOW"))


def _state_animation(command):
    # Generic animation (E9 0B, E9 0E, E9 0F, etc.). The jewels have 7
    # pixels each (1 center + 6 outer ring), so we can do real spatial
    # rotation: cycle the outer ring through the palette slots while
    # keeping the center a fixed color. Reads as a proper "color wheel"
    # effect like the real bands.
    raw = command["raw"]
    slots = []
    slot_names = []
    # Most animation payloads have color bytes after the 7-byte header.
    # Skip the last byte (vibration) when collecting colors.
    for byte in raw[7:-1]:
        idx = byte & 0x1F
        if idx < 0x1F:  # skip obvious non-color bytes like vibration codes
            slots.append(magicband_protocol.PALETTE_RGB[idx])
            slot_names.append(magicband_protocol.PALETTE_NAMES[idx])
    if not slots:
        slots = [(100, 100, 100)]
        slot_names = ["Gray"]
    func = command.get("func", 0)

    # Label lists distinct color short names for at-a-glance recognition.
    distinct = []
    for name in slot_names:
        short = name.split()[0][:4]
        if not distinct or distinct[-1] != short:
            distinct.append(short)
    # Cap label length so serial output stays readable
    label_colors = '>'.join(distinct[:4])
    if len(distinct) > 4:
        label_colors += '...'
    label = f"ANIM 0x{func:04X} {label_colors}"

    def render(zones, t):
        n_slots = len(slots)
        # How fast the color wheel rotates - one full revolution per period
        rotations_per_s = 1.0 / _ROTATE_PERIOD_S
        # Global phase advances linearly with time
        phase = t * rotations_per_s
        for zone_idx, zone in enumerate(zones):
            zone_offset = 0.5 if zone_idx == 1 else 0.0  # right trails left
            # Center LED gets the "middle" slot as an anchor color
            center_slot = int(phase) % n_slots
            zone.set_led(0, slots[center_slot])
            # Outer ring LEDs (1-6) each get a color at their angular
            # position, offset by the rotating phase.  count=7 means
            # indices 1..6 are outer pixels for the NeoPixel Jewel.
            outer_count = max(1, zone.count - 1)
            for led_idx in range(1, zone.count):
                # Each outer pixel's color index walks around the palette
                # based on its physical angular position + the rotation phase
                angle_frac = (led_idx - 1) / outer_count
                color_phase = phase + zone_offset + angle_frac
                slot = int(color_phase * n_slots) % n_slots
                zone.set_led(led_idx, slots[slot])

    return {
        "duration_s": _DEFAULT_DURATION_S,
        "render": render,
        "label": label,
    }


# Dispatch table for for_command(). Defined after the _state_* functions
# so all references resolve. Handlers all take a command dict, except
# _state_ping which takes no args.
_COMMAND_HANDLERS = {
    "ping": _state_ping,
    "wand_cast": _state_wand_cast,
    "single_color": _state_single_color,
    "dual_color": _state_dual_color,
    "five_color": _state_five_color,
    "six_bit_color": _state_six_bit,
    "show_fx": _state_show_fx,
    "cross_fade": _state_cross_fade,
    "animation": _state_animation,
    "parade_command": _state_parade_command,
    "show_command": _state_show_command,
    "statue_beacon": _state_statue_beacon,
    "find_me": _state_find_me,
}


def render_idle(zones):
    '''Default renderer when no animation is active. Blanks both zones.'''
    zones[0].fill((0, 0, 0))
    zones[1].fill((0, 0, 0))

def _state_dual_color(command):
    inner_rgb = magicband_protocol.PALETTE_RGB[command["inner_idx"]]
    outer_rgb = magicband_protocol.PALETTE_RGB[command["outer_idx"]]
    duration_s = command["timing"]["seconds"]

    def render(zones, t):
        for zone_idx, zone in enumerate(zones):
            zone.set_led(0, inner_rgb)
            phase_offset = 0.5 if zone_idx == 1 else 0.0
            ...
    return {"duration_s": duration_s, "render": render, "label": "DUAL ..."}

REMOTE_COMMANDS = {
    bytes.fromhex("aa4201"): "battery",
    bytes.fromhex("aa4203"): "brightness",
    bytes.fromhex("aa4204"): "find",
    bytes.fromhex("aa4205"): "statue",
}


def remote_command(payload):
    return REMOTE_COMMANDS.get(bytes(payload[:3]))

if frame_t < find_mode_until:
    ...
elif frame_t < solo_indicator_until:
    ...
elif frame_t < brightness_flash_until:
    ...
elif frame_t < battery_display_until:
    ...
elif active_state is not None:
    ...
elif solo_mode:
    ...
else:
    renderer.render_idle(zones)
